Description

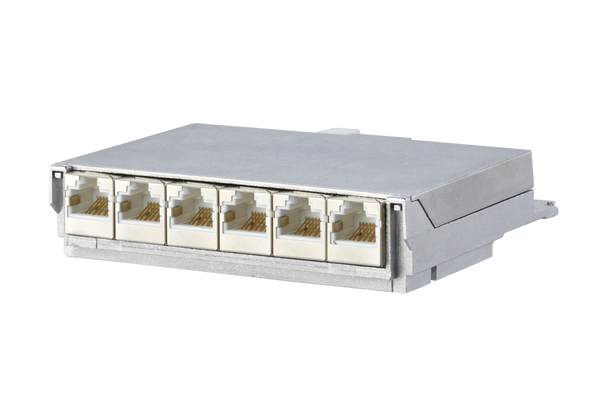

- 6 port module housing made of zinc die-casting for mounting in top hat rail adapter, AP empty housing or 1RU 6 port module frame
- certified to GHMT Cat.6 12C-de-embedded
- compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
- tested: Link to 500 MHz
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
- wire pairs can be led to the LSA terminal without untwisting the pair

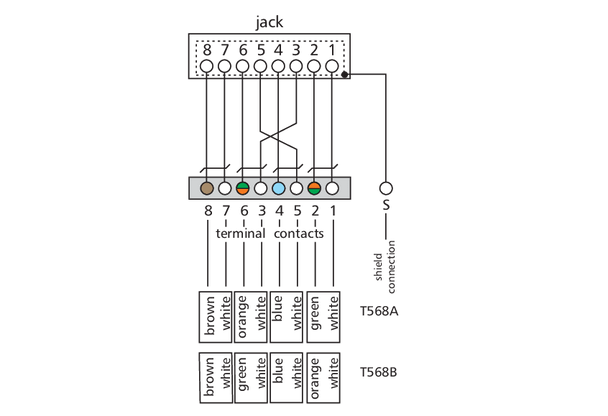

- connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 22-24) conductor colors marking to TIA/EIA 568A
- optional strain relief using cable ties
- incl. 30 cm grounding cable
- grounding bolt M6 x 10 with nut and lock washer
Resources
E-DAT C6 6x8 1RU Modul Cat.6 | 860018-11-E | View DataSheet |
---|
