Metz Connect 360291. Type 360291

No reviews yet Write a Review
$0.00
Metz Connect 360291 Type 360291 | American Cable Assemblies
Metz Connect 360291. Type 360291
Metz Connect 360291. Type 360291
SKU:
MTZ360291
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Mounting style:
wave solderable (THT)
Centerline:
Single poles
Direction of connection:
90 °
Connection capacity single-wire:
0,33 - 2,0 mm²
Connection capacity multi-wire:
0,33 - 1,5 mm²
RoHS:
compliant
EAN:
4251122156755

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

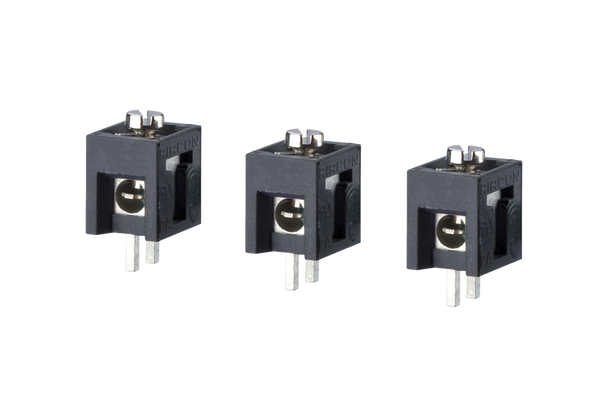

  • screw type terminal block, solderable, double solder pins
  • direction of connection 90°
  • wire protector
  • color black
  • with molded housing, screw brought down by hand (transport safety)

Resources

Type 360291 | 360291View DataSheet

Specifications

General Data
Tightening torque SEV: 0.5 Nm
Tightening torque UL: 4.4 lb-in
Solder pin length: 3.5 mm
min. number of poles: 1
max. number of poles: 1
Insulating material class: CTI 600
Connection Data
Connection capacity (single-wire): 0,33 - 2,0 mm²
Connection capacity (single-wire): AWG 22 - 14
Connection capacity (multi-wire): 0,33 - 1,5 mm²
Connection capacity (multi-wire): AWG 22 - 14
Material
terminal body material: CuZnPb
terminal body surface: Ni + Sn
screw surface: Zn Cr(VI)-frei/free
wire protector material: CuNi18
terminal body thread: M3
Climatic Data
upper limit temperature: 105 °C
lower limit temperature: -40 °C
