Description

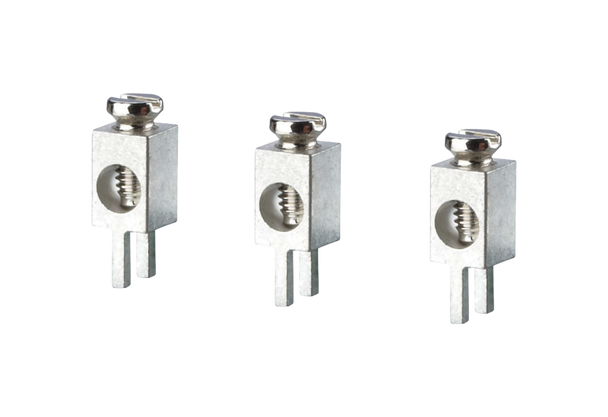

- screw type terminal block, solderable, double solder pins
- direction of connection 90°
- color metallike
- open construction, screw brought down by hand (transport safety)
Resources
| Type 360272 | 360272 | View DataSheet |
|---|
| Type 360272 | 360272 | View DataSheet |
|---|
| Tightening torque SEV: | 0.5 Nm |
|---|---|
| Tightening torque UL: | 4.4 lb-in |
| Solder pin length: | 3.5 mm |
| min. number of poles: | 1 |
| max. number of poles: | 1 |
| Protection category: | IP00 |
| Rated current: | 15 A |
| Connection capacity (single-wire): | 0,13 - 2,0 mm² |
|---|---|
| Connection capacity (single-wire): | AWG 26 - 14 |
| Connection capacity (multi-wire): | 0,13 - 1,5 mm² |
| Connection capacity (multi-wire): | AWG 26 - 14 |
| terminal body material: | CuZnPb |
|---|---|
| terminal body surface: | Ni + Sn |
| screw surface: | Zn Cr(VI)-frei/free |
| terminal body thread: | M2.6 |
