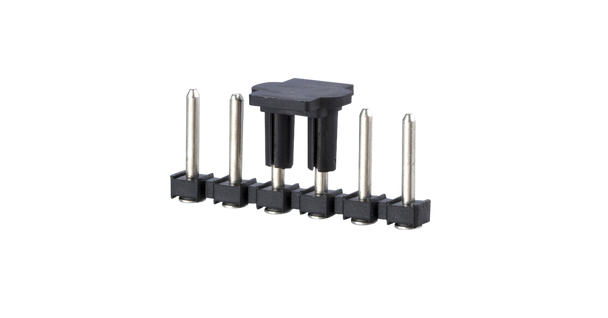

| PM013xxVBHC Type 424 | | View DataSheet |
|---|
| min. number of poles: | 2 |
|---|---|
| max. number of poles: | 12 |
| Insulating material class: | CTI 400 |
| clearance/creepage dist.: | 1.5 mm |
| Protection category: | IP00 |
| insulating material: | PA46 |
|---|---|
| flammability class: | V0 |
| contact pin material: | CuZnPb |
| contact pin surface: | Ni + Sn |
| Glow-Wire Flammability GWFI: | - |
| Glow-Wire Flammability GWIT: | - |
| upper limit temperature: | 125 °C |
|---|---|
| lower limit temperature: | -40 °C |
