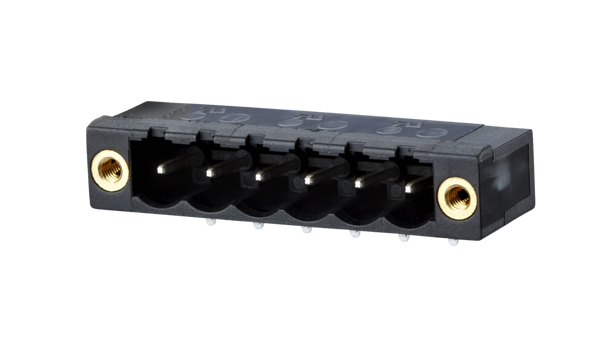

| PT116xxHBBF Type 236 | | View DataSheet |
|---|
| Solder pin length: | 3.45 mm |
|---|---|
| min. number of poles: | 2 |
| max. number of poles: | 24 |
| Insulating material class: | CTI 600 |
| clearance/creepage dist.: | 4.08 mm |
| Protection category: | IP00 |
| insulating material: | PA66 |
|---|---|
| flammability class: | V0 |
| contact pin material: | CuFe |
| contact pin surface: | Ni + Ag |
| Glow-Wire Flammability GWFI: | 960 °C acc. to IEC 60695-2-12 |
| Glow-Wire Flammability GWIT: | 775 °C acc. to IEC 60695-2-13 |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
