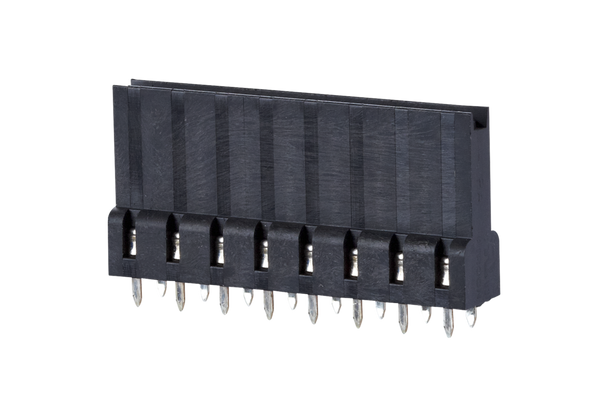

Description
- female connector, solderable, double solder pins
- centerline 5.00 mm, direction of connection vertical 0°
- fittable without loss of poles
- color black
- board-to-board connection with headers centerline 5.00 mm / 0.197 inches possible
Resources
| FT085xxVBFC Type 026 | | View DataSheet |
|---|
Specifications
| Solder pin length: | 3.2 mm |
|---|---|
| min. number of poles: | 2 |
| max. number of poles: | 16 |
| Insulating material class: | CTI 600 |
| clearance/creepage dist.: | 4 mm |
| Protection category: | IP20 |
| insulating material: | PA66 |
|---|---|
| flammability class: | V0 |
| contact material: | CuSn |
| Contact surface: | Sn |
| Glow-Wire Flammability GWFI: | 960 °C acc. to IEC 60695-2-12 |
| Glow-Wire Flammability GWIT: | 775 °C acc. to IEC 60695-2-13 |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
