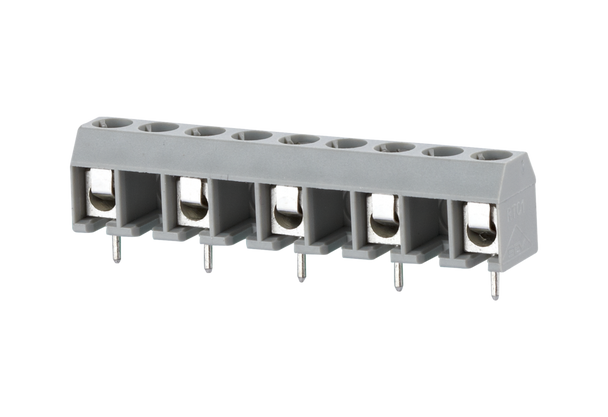

| RT019xxHDWC Type 001 | | View DataSheet |
|---|
| Tightening torque SEV: | 0.4 Nm |
|---|---|
| Tightening torque UL: | 3.5 lb-in |
| Solder pin length: | 3.8 mm |
| min. number of poles: | 2 |
| max. number of poles: | 11 |
| Insulating material class: | CTI 600 |
| clearance/creepage dist.: | 7.6 mm |
| Protection category: | IP10 |
| Min. insul. strip length: | 6 mm |
| Rated current: | 13 A |
| Connection capacity (single-wire): | 0,34 - 2,0 mm² |
|---|---|
| Connection capacity (single-wire): | AWG 22 - 14 |
| Connection capacity (multi-wire): | 0,34 - 2,0 mm² |
| Connection capacity (multi-wire): | AWG 22 - 14 |
| insulating material: | PA66 |
|---|---|
| flammability class: | V0 |
| terminal body material: | CuZnPb |
| terminal body surface: | Ni + Sn |
| screw surface: | Zn Cr(VI)-frei/free |
| wire protector material: | CuSn |
| wire protector surface: | Sn |
| terminal body thread: | M3 |
| Glow-Wire Flammability GWFI: | 960 °C acc. to IEC 60695-2-12 |
| Glow-Wire Flammability GWIT: | 775 °C acc. to IEC 60695-2-13 |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
