Metz Connect 152SC8FMOXYYZZ. OpDAT cable fanout 1xMTP-F/4xE2000-D OM4

No reviews yet Write a Review
$0.00
Metz Connect 152SC8FMOXYYZZ OpDAT cable fanout 1xMTP-F/4xE2000-D OM4 | American Cable Assemblies
Metz Connect 152SC8FMOXYYZZ. OpDAT cable fanout 1xMTP-F/4xE2000-D OM4
Metz Connect 152SC8FMOXYYZZ. OpDAT cable fanout 1xMTP-F/4xE2000-D OM4
SKU:
MTZ152SC8FMOXYYZZ
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Cable type:
MPO/MTP® cable
Fiber type:
OM4
Interface 1:
MPO/MTP®
Interface 2:
E2000-D
RoHS:
compliant

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

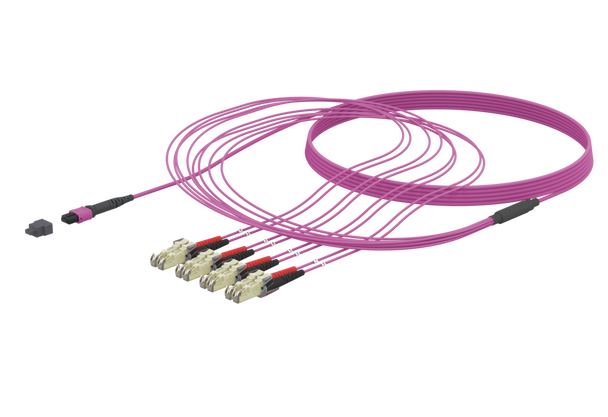

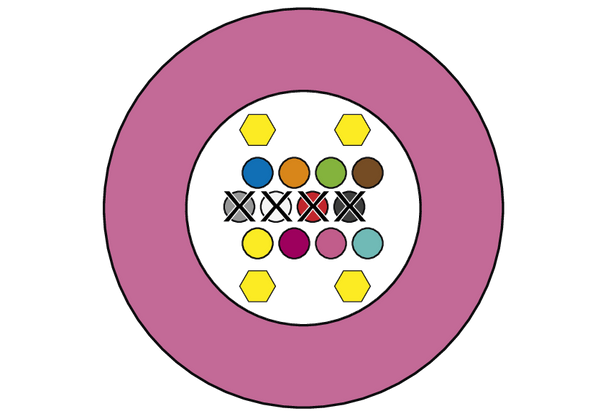

  • Cable fanout with 8 MM fibers, assembled with one MPO/MTP® connector and 4 E2000-duplex connectors.
  • Plastic divider as transition to fanout, consisting of individual cables with Ø 3 mm, length 0.7 m
  • Female connector (without pins).
  • Available in the assignment variant polarity A or B.
  • A insertion aid incl. fastening set is optionally available on the MTP side.
  • Suitable for transmissions of e.g. 100 Gbit/s (depending on transceiver technology).
  • Cable with aramid yarn, suitable for indoor applications.
  • Diameter available in Ø 3.0 mm
  • UV stabilized, flame retardant and halogen free.
  • Fibre type: Bend-resistant multimode fibre, G50/125µm, OM4 (IEC 11801), IEC 60793-2-10 A1a.3, ITU-T G.651.1.
  • 100 % tested for insertion loss, return loss and end face geometry
  • all fanouts with serial number, barcode and measurement protocol
  • all available variants can be created with the MTP® configurator
  • MTP® is a registered trademark of US Conec Ltd., USA

Resources

OpDAT cable fanout 1xMTP-F/4xE2000-D OM4 | 152SC8FMOXYYZZView DataSheet
