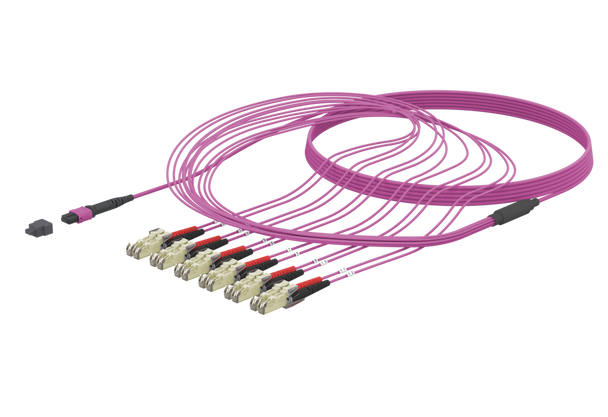

Metz Connect 152SBTFMOXYYZZ. OpDAT cable fanout 1xMTP-F/6xE2000-D OM4

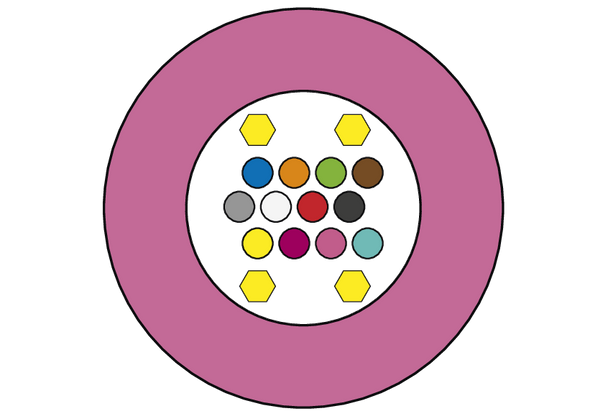

• Cable fanout with 12 MM fibers, assembled with one MPO/MTP® connector and 6 E2000-duplex connectors.
• Plastic divider as transition to fanout, consisting of individual cables with Ø 3 mm, length 0.7 m
• Female connector (without pins).
• Available in the assignment variant polarity A or B.
• A insertion aid incl. fastening set is optionally available on the MTP side.
• Suitable for transmissions of e.g. 100 Gbit/s (depending on transceiver technology).
• Cable with aramid yarn, suitable for indoor applications.
• Diameter available in Ø 3.0 mm
• UV stabilized, flame retardant and halogen free.
• Fibre type: Bend-resistant multimode fibre, G50/125µm, OM4 (IEC 11801), IEC 60793-2-10 A1a.3, ITU-T G.651.1.
• 100 % tested for insertion loss, return loss and end face geometry
• all fanouts with serial number, barcode and measurement protocol
• all available variants can be created with the MTP® configurator
• MTP® is a registered trademark of US Conec Ltd., USA
