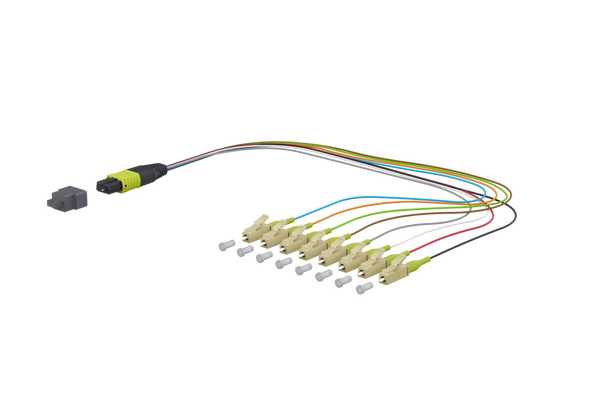

Metz Connect 151R48MJO003A. OpDAT Ader-Fanout MTP-M/8xLC-S OM5 0.3 m

• Wire fanout with 8 OM5 fibres, assembled with one MPO/MTP® connector and 8 LC simplex connectors.
• Male connector (with pins) as standard. Variants with female connector (without pins) are possible.
• available in assignment variants polarity A
• suitable for transmissions of e.g. 100 Gbit/s (depending on transceiver technology)
• wire diameter Ø 0.9 mm, color-coded according to TIA/EIA 598
• Fibre type: Bend insensitive multimode fibre, G50/125 µm, OM5 (IEC 11801), IEC 60793-2-10 A1a.4, ITU-T G.651.1.
• 100 % tested for insertion loss, return loss and end face geometry
• all patch cords are provided with serial number, barcode and measurement protocol
• all available variants can be created with the MTP® configurator
• MTP® is a registered trademark of US Conec Ltd., USA
