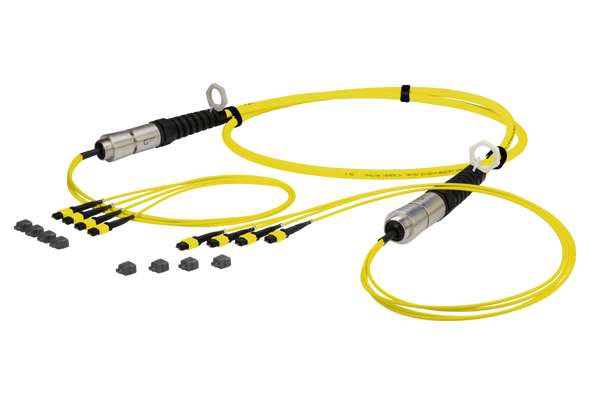

Metz Connect 151PX8F8F0XXY. OpDAT patch cord MTP-F/MTP-F OS2, 8 fibres

• patch cord with 8 SM fibers, assembled on both sides with MPO/MTP® connectors, yellow housing color
• the SM-Elite® ferrules have always a bevelled grinding
• Female connectors (without pins) as standard. Variants with male connectors (with pins) are possible.
• available in assignment variants polarity A or B
• suitable for transmissions of e.g. 4x25 Gbit/s (depending on transceiver technology)
• Cable with aramid fabric, suitable for indoor applications. Diameter available in Ø 2.0 mm and Ø 3.0 mm, sheath color yellow, UV stabilized, flame retardant and halogen free.
• Fiber type: Single mode fiber, E9/125 µm, OS2 (IEC 11801), IEC 60793-2-50 B.1.3 and B.6_a, bend insensitive according to ITU-T G657.A1, compatible to ITU-T G.652.D.
• 100 % tested for insertion loss, return loss and end face geometry
• all patch cords are provided with serial number, barcode and measurement protocol
• all available variants can be created with the MTP® configurator
• MTP® is a registered trademark of US Conec Ltd., USA
