Description

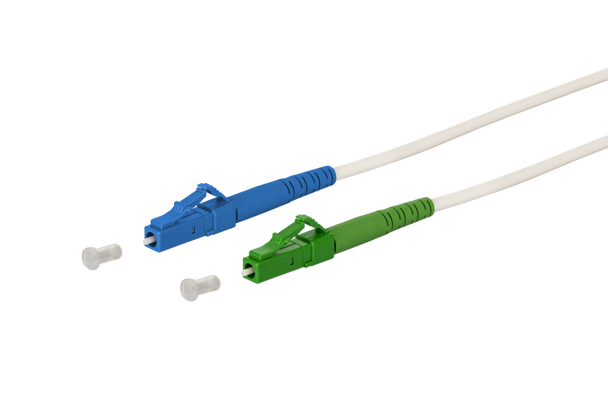

- simplex patch cord I-V(ZN)H1 E9/125 OS2 to connect the fiber optic wall outlet and the terminal device in FITH applications
- single mode fiber OS2, E9/125 µm bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2 compatible to G.652.D

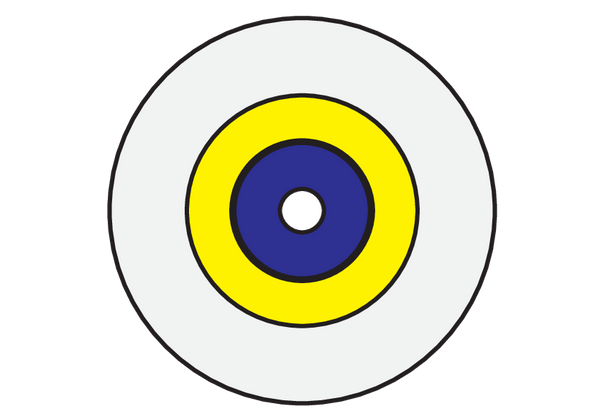

- outer diameter 2.8 mm
- color: white
- cable jacket LSHF-FR hologen-free with low smoke development, flame retardant
- 100 % tested for insertion loss and return loss
- all patch cords are provided with a serial number
- all available variants can be created with the cable configurator
Resources
| OpDAT patch cord LC-S/LC-S APC OS2, white | 151P7JOJAXXE | View DataSheet |
|---|---|
| OpDAT patch cord LC-S/LC-S APC OS2, white | 151P7JOJAXXE | View Product Information |
