Sold Out
Metz Connect

Metz Connect 151P48MJO003A. OpDAT Ader-Fanout MTP-M/8xLC-S OS2 0.3 m

No reviews yet Write a Review
$0.00
Metz Connect 151P48MJO003A OpDAT Ader-Fanout MTP-M/8xLC-S OS2 0.3 m | American Cable Assemblies
Metz Connect 151P48MJO003A. OpDAT Ader-Fanout MTP-M/8xLC-S OS2 0.3 m
Metz Connect 151P48MJO003A. OpDAT Ader-Fanout MTP-M/8xLC-S OS2 0.3 m
SKU:
MTZ151P48MJO003A
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Cable type:
Wire Fanout
Fiber type:
OS2
Interface 1:
MPO/MTP®
Interface 2:
LC UPC
RoHS:
compliant
EAN:
4251394659381

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

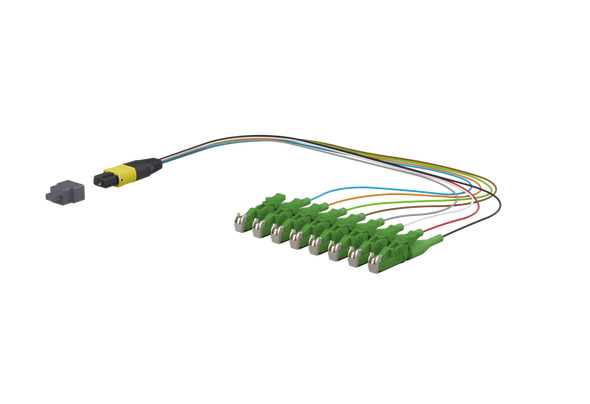

  • Wire fanout with 8 SM fibers, assembled with one MPO/MTP® connector and 8LC-simplex connectors.
  • Male connector (with pins) as standard. Variants with female connector (without pins) are possible.
  • available in assignment variants polarity A
  • suitable for transmissions of e.g. 100 Gbit/s (depending on transceiver technology)
  • wire diameter Ø 0.9 mm, color-coded according to TIA/EIA 598
  • Fiber type: Single mode fiber, E9/125 µm, OS2 (IEC 11801), IEC 60793-2-50 B.1.3 and B.6_a, bend insensitive according to ITU-T G657.A1, compatible to ITU-T G.652.D.
  • 100 % tested for insertion loss, return loss and end face geometry
  • all patch cords are provided with serial number, barcode and measurement protocol
  • all available variants can be created with the MTP® configurator
  • MTP® is a registered trademark of US Conec Ltd., USA

Resources

OpDAT Ader-Fanout MTP-M/8xLC-S OS2 0.3 m | 151P48MJO003AView DataSheet
