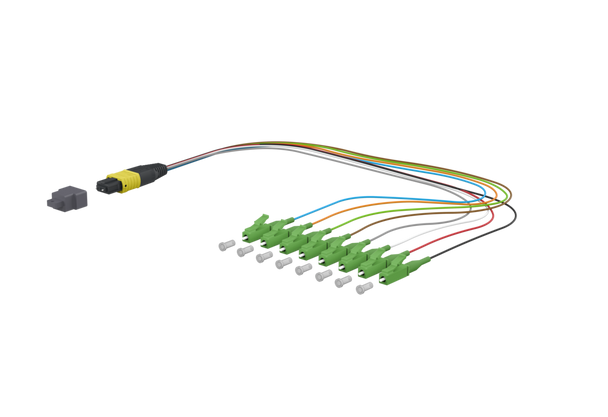

Metz Connect 151P48MJA003A. OpDAT Ader-Fanout MTP-M/8xLC-S APC OS2 0.3 m

• Wire fanout with 8 SM fibers, assembled with one MPO/MTP® connector and 8 LC-APC-simplex connectors.
• Male connector (with pins) as standard. Variants with female connector (without pins) are possible.
• available in assignment variants polarity A
• suitable for transmissions of e.g. 100 Gbit/s (depending on transceiver technology)
• wire diameter Ø 0.9 mm, color-coded according to TIA/EIA 598
• Fiber type: Single mode fiber, E9/125 µm, OS2 (IEC 11801), IEC 60793-2-50 B.1.3 and B.6_a, bend insensitive according to ITU-T G657.A1, compatible to ITU-T G.652.D.
• 100 % tested for insertion loss, return loss and end face geometry
• all patch cords are provided with serial number, barcode and measurement protocol
• all available variants can be created with the MTP® configurator
• MTP® is a registered trademark of US Conec Ltd., USA
