Description

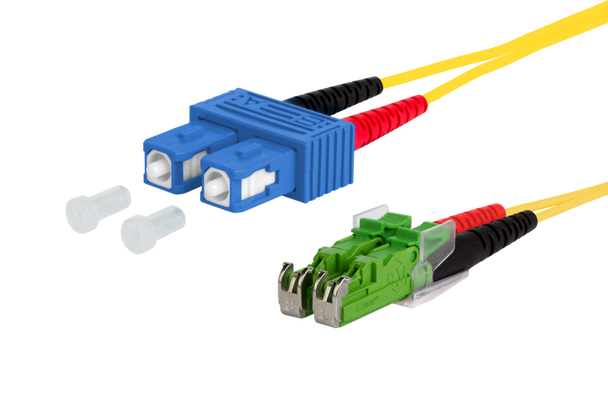

- single mode patch cord I-V(ZN)H E9/125 OS2
- single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible to G.652.D
- outer diameter 2.0 x 4.2 mm
- halogen-free LSHF-FR sheath with low smoke development, flame retardant

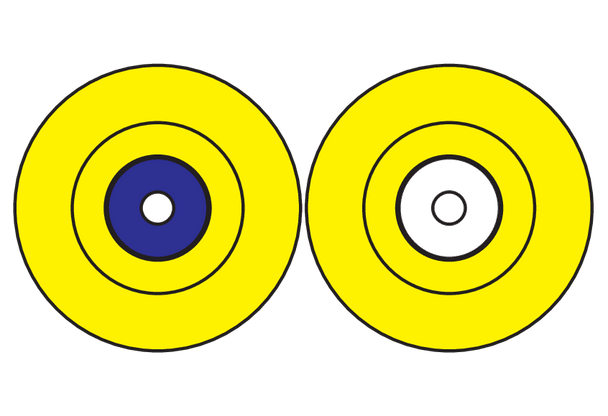

- duplex cord as zip-cord (figure 8) with two tight buffered fibers and aramide strain relief
- 100 % tested
- maximum length: 20 m
- all available variants can be created with the cable configurator
Resources
| OpDAT patch cord SC-D/E2000-D APC OS2 | 151P1EOMAXXE | View DataSheet |
|---|---|
| OpDAT patch cord SC-D/E2000-D APC OS2 | 151P1EOMAXXE | View Product Information |
