Metz Connect 150U0125E120M. OpDAT universal cable 1x12 OM3 class Eca

Description

installation cable U-DQ(ZN)BH
universal fiber optic cable for indoors/outdoors with central or stranded loose tube
bend insensitive fiber
UV-resistant, metal-free, longitudinally waterproof, tensile strength and rodent repellent
cable jacket: LSHF

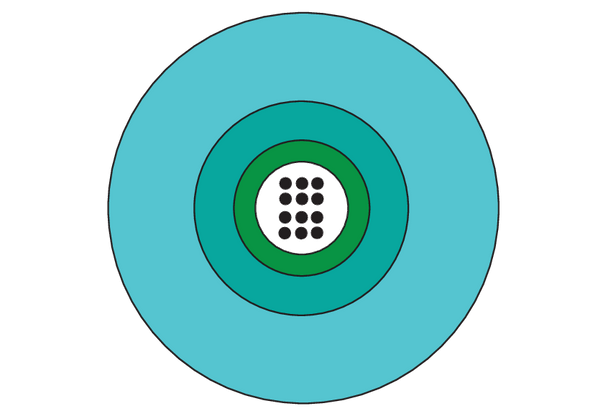

cable structure: filled loose tubes
cable diameter for central loose tube 7.5 mm with 2 to 12 fibers per loose tube
cable diameter for central loose tube 8.0 mm with 24 fibers per loose tube
cable diameter with stranded loose tube 11.0 mm
strain relief: longitudinally waterproof wrapping, glasroving elements
stranded loose tubes: loose tubes grouped around a glass fiber reinforced plastic stick with a dia. of 2.5 mm
for laying in ducts or directly in the ground in a suitable layer of sand
applicable standards: EN 50173-1, ISO 11801 2nd edition, IEC 60794-1, EN 187000
fire behaviour: class Eca (classification acc. to EN 13501-6)
variants: number of OM5 fibers: 1x4, 1x8, 1x12, 1x24, 4x12
variants: number of OM4 fibers: 1x4, 1x8, 1x12, 1x24, 4x12
variants: number of OM3 fibers: 1x4, 1x8, 1x12, 1x24, 4x12
variants: number of OM2 fibers: 1x4, 1x8, 1x12
all available variants can be created with the configurator
