Description
- installation cable U-DQ(ZN)BH
- universal fiber optic cable for indoors/outdoors with central or stranded loose tube
- bend insensitive fiber
- UV-resistant, metal-free, longitudinally waterproof, tensile strength and rodent repellent
- cable jacket: LSHF
- cable structure: filled loose tubes
- cable diameter for central loose tube 7.5 mm with 2 to 12 fibers per loose tube
- cable diameter for central loose tube 8.0 mm with 24 fibers per loose tube
- cable diameter with stranded loose tube 11.0 mm
- strain relief: longitudinally waterproof wrapping, glasroving elements
- stranded loose tubes: loose tubes grouped around a glass fiber reinforced plastic stick with a dia. of 2.5 mm
- for laying in ducts or directly in the ground in a suitable layer of sand
- applicable standards: EN 50173-1, ISO 11801 2nd edition, IEC 60794-1, EN 187000
- fire behaviour: class Eca (classification acc. to EN 13501-6)
- variants: number of OM5 fibers: 1x4, 1x8, 1x12, 1x24, 4x12
- variants: number of OM4 fibers: 1x4, 1x8, 1x12, 1x24, 4x12
- variants: number of OM3 fibers: 1x4, 1x8, 1x12, 1x24, 4x12
- variants: number of OM2 fibers: 1x4, 1x8, 1x12
- all available variants can be created with the configurator
Resources

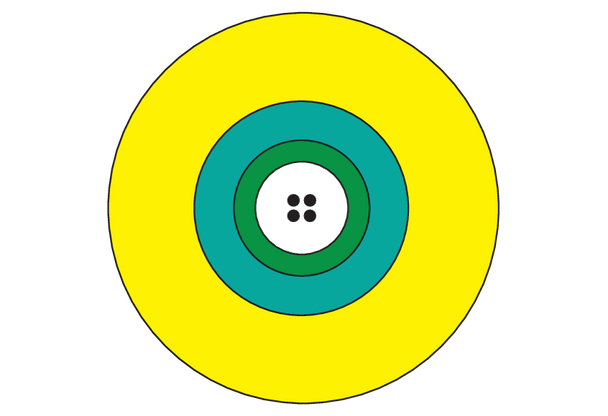

| OpDAT universal cable 1x4 OS2 class Eca | 150U0049E120M | View DataSheet |
|---|
