Description
- connecting cable I-V(ZN)H
- duplex cable for direct connector assembly for indoor use
- bend insensitive fiber
- cable sheath: LSHF-FR
- UV-resistant, metal-free, longitudinally watertight
- cable construction: Two 2 mm separately strain-relieved cables
- each cable with 900 µm tight buffer
- tension relief: aramide
- applicable standards: EN 50173-1, ISO 11801 2nd edition, IEC 60794-2, IEC 60794-2-10, EN 187000
- variants fiber types: OS2, OM5, OM4, OM3

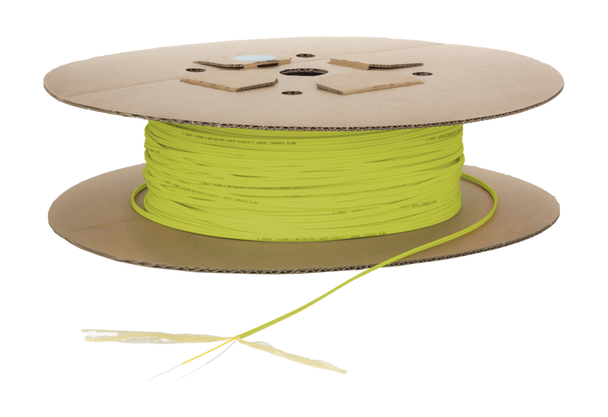

- each possible for 20 m as cable ring, 50 m on cardboard drum and 100 m on cardboard drum
Resources
| OpDAT patch cord 2x1 OM5 class Dca 50.0 m | 150R1D0050M | View DataSheet |
|---|
