Description

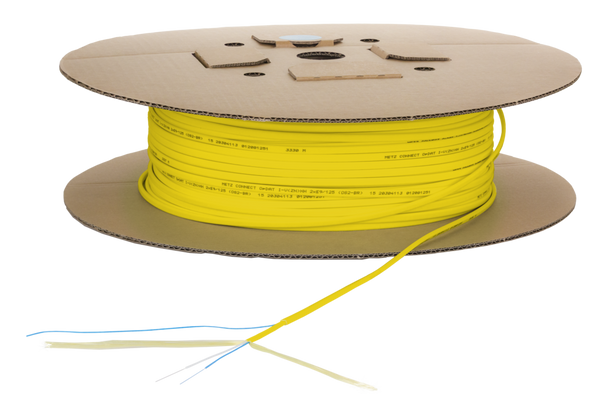

- connecting cable I-V(ZN)HH
- breakout cable for direct connector assembly for indoor use
- bend insensitive fiber
- cable sheath: LSHF-FR
- UV-resistant, metal-free, longitudinally watertight
- cable construction: two 2 mm separately strain-relieved cables under a common cable jacket
- each cable with 900 µm tight buffer
- tension relief: aramide
- applicable standards: EN 50173-1, ISO 11801 2nd edition, IEC 60794-2, IEC 60794-2-10, EN 187000
- fire behavior: class Dca s1 d1 a1 according to EN 50399 (classification according to EN 13501-6)
- variants fiber types: OS2, OM5, OM4, OM3
- each possible for 20 m as cable ring, 50 m on cardboard drum and 100 m on cardboard drum
Resources
| OpDAT connection cable 2x1 OS2 class Dca 50.0 m | 150P2D0050M | View DataSheet |
|---|
