Description

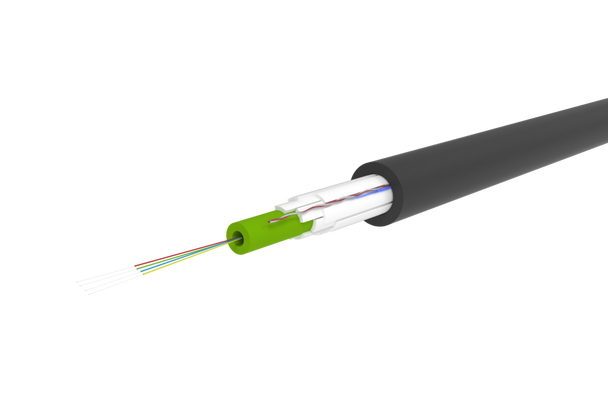

- OpDAT outdoor cable
- installation cable A-DQ(ZN)B2Y
- outdoor cable with central loose tube (up to 24 fibres) or stranded loose tube (48 fibres)
- cable structure: filled loose tube
- cable diameter for filled loose tube (up to 24 fibres): Ø 6.7 mm
- cable diameter with stranded loose tubes: Ø 11.0 mm
- stranded loose tubes: loose tubes grouped around a glass fiber reinforced plastic stick with a dia. of 2.5 mm
- bend insensitive fiber
- UV-resistant, metal-free, longitudinally waterproof, tensile strength and rodent repellent
- cable jacket: LLDPE
- strain relief: longitudinally waterproof wrapping, glass roving elements
- cable for laying in ducts or directly in the ground
- applicable standards: ISO 11801-1, EN50173-1:2002, IEC 60794-1
- variants: number of OS2 fibers: 1x4, 1x12, 1x24, 4x13
- variants: number of OM4 fibers: 1x4, 1x12, 1x25
- variants: number of OM3 fibers: 1x4, 1x12, 1x25
- all available variants can be created with the configurator
Resources
| OpDAT outdoor cable 1x4 OM3 class Fca | 150A00450120M | View DataSheet |
|---|
