Description

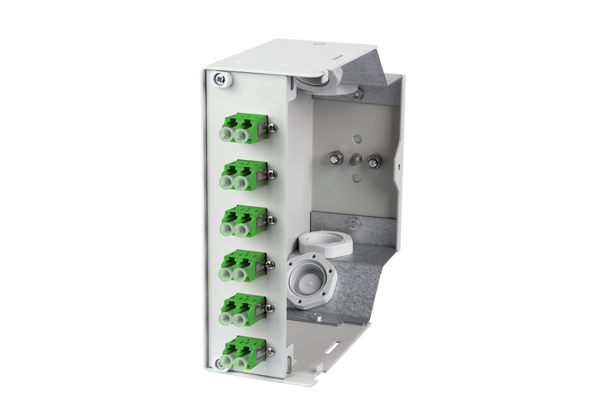

- Compact distributor housing for TH35 top hat rail systems
- Prepared for installation of pre-terminated installation cables (VIK)
- suitable for VIKs with universal and breakout cables with a maximum of 12 fibers
- suitable for VIKs with mini-breakout cables with a maximum of 24 fibers
- equipped with LC-D adapters
- Front area with identification strips
- Various mounting positions on the top hat rail system possible
- Cable insertion from above or below, straight or inclined, suitable for M20 strain relief (up to 2 possible)
- Housing made from sheet steel, powder coated (light gray, RAL 7035)
- Variants: equipped with LC-D adapters each blue (OS2), green (OS2 APC), violet (OM4), aqua (OM3) or lime green (OM5)
Resources
| OpDAT REGpro VIK 6xLC-D APC OS2 | 15024A07606-E | View DataSheet |
|---|---|
| OpDAT REGpro VIK 6xLC-D APC OS2 | 15024A07606-E | View Product Information |
