PVC-cable for measurement, control and sensor technology. Suitable for applications in dry areas on packaging machines, assembly and conveyor technology. High flexibility with unstressed movement (conditional drag chain application possible). Predestined for applications in food and beverage industry. Special features: seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant
- all available variants can be created with the configurator
Resources

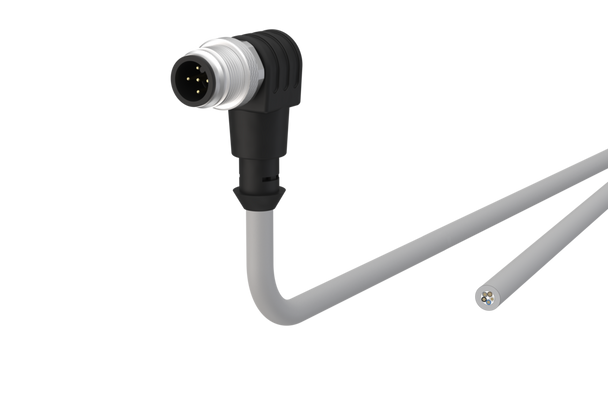

| M12 Sensor/actuator cable, A-coded, X.X m, M12 plug angled - free line end, unshielded, 5-pole, PVC | 142MJAD0XXX | View DataSheet |
|---|
Specifications
General Data | Fields of application: | |
| Design: | Sensor/actuator connection cable M12, A-coded |
| Shielding: | unshielded |
| Transmission technology: | Copper |

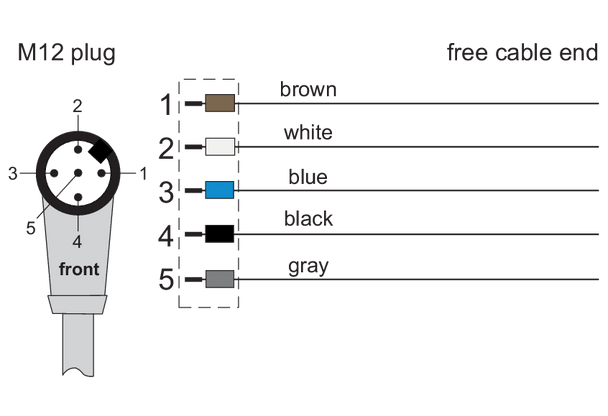

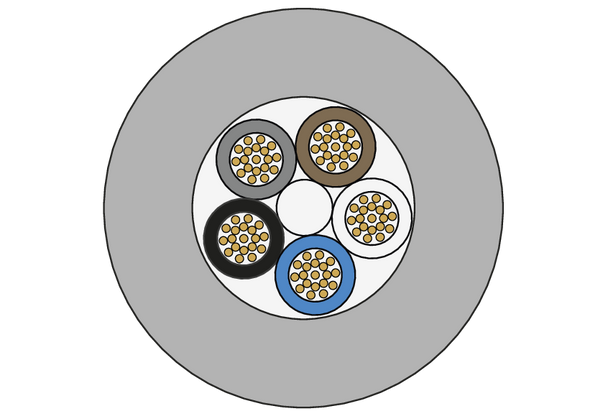

| Color coding fiber/ wire(s): | brown, white, blue, black, gray |
| Color: | gray |
| Labeling option: | identification label carrier |
Connections/interfaces | Connector technology interface 1: | M12-plug angled |
| Connector technology interface 2: | free line end |
| Number of positions/contacts interface 1: | 5 |
| Coding interface 1: | A-coded |
| Conductor cross section, stranded wire [AWG max.]: | AWG 22/19 |
| Cable sheath diameter [mm min.]: | 4.9 mm |
| Cable sheath diameter [inch min.]: | 0.193 in. |
Electrical characteristics | Current carrying capacity: | 4 A at 40 °C |
| Rated voltage: | 60 V |
| Insulation resistance: | min. 100 MOhm |
Mechanical data | Life - Number of mating cycles: | min. 100 |
| Maximum operating bending radius [mm]: | 49 mm |
| Alternating bending radius: | 49 mm |
Materials and material properties | Material - Conductor: | Cu (copper) |
| Material - Conductor Insulation: | PVC |
| Material - Cable jacket: | PVC |
| Material - Body interface 1: | Plastics |
| Material - Contact interface 1: | CuSn (tin bronze) |
| Material - Contact finish interface 1: | Au (gold) |
| Material - Contact carriers interface 1: | Plastics |
| Material - Union nut interface 1: | CuZnPb (brass) |
| Material - Union nut finish interface 1: | Ni (nickel) |
| UV-resistance: | yes |
| RoHS: | compliant |
