Metz Connect

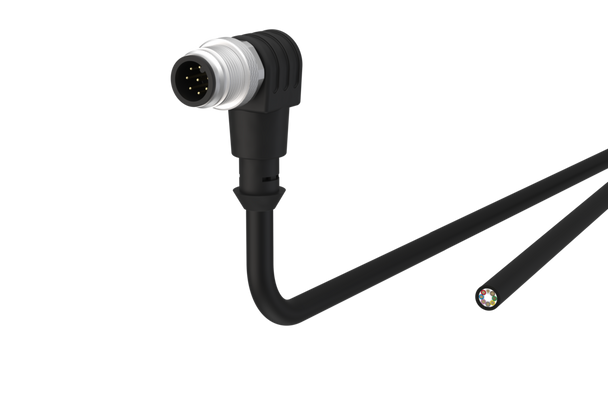

Metz Connect 142MEAD0XXX. M12 Sensor/actuator cable, A-coded, X.X m, M12 plug angled - free line end, unshielded, 8-pole, PUR

No reviews yet Write a Review
$0.00
Metz Connect 142MEAD0XXX M12 Sensor/actuator cable, A-coded, X.X m, M12 plug angled - free line end, unshielded, 8-pole, PUR | American Cable Assemblies
Metz Connect 142MEAD0XXX. M12 Sensor/actuator cable, A-coded, X.X m, M12 plug angled - free line end, unshielded, 8-pole, PUR
Metz Connect 142MEAD0XXX. M12 Sensor/actuator cable, A-coded, X.X m, M12 plug angled - free line end, unshielded, 8-pole, PUR
Metz Connect 142MEAD0XXX. M12 Sensor/actuator cable, A-coded, X.X m, M12 plug angled - free line end, unshielded, 8-pole, PUR
SKU:
MTZ142MEAD0XXX
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Connection line/cable:
Connection cable
Cable types:
AWG 24/32 PUR
Interface 1:
M12-plug angled
Interface 2:
free line end
Number of poles:
8-pole
Shielding:
unshielded
Cable structure:
PUR
Conductor cross section, stranded wire:
AWG 24/32
RoHS:
compliant

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag-chain application is possible at a bending radius of minimum 10xd. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine tools and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Special features: flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain resistant, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant

  • all available variants can be created with the configurator

Resources

M12 Sensor/actuator cable, A-coded, X.X m, M12 plug angled - free line end, unshielded, 8-pole, PUR | 142MEAD0XXXView DataSheet

Specifications

General Data
Fields of application:
  • Industrial Ethernet
Design: Sensor/actuator connection cable M12, A-coded
Shielding: unshielded
Transmission technology: Copper

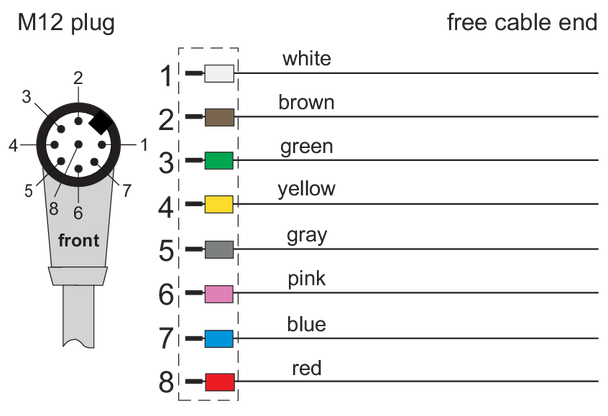

Color coding fiber/ wire(s): white, brown, green, yellow, gray, pink, blue, red
Color: black
Labeling option: identification label carrier
Connections/interfaces
Connector technology interface 1: M12-plug angled
Connector technology interface 2: free line end
Number of positions/contacts interface 1: 8
Coding interface 1: A-coded
Conductor cross section, stranded wire [AWG max.]: AWG 24/32
Cable sheath diameter [mm min.]: 5.9 mm
Cable sheath diameter [inch min.]: 0.232 in.
Electrical characteristics
Current carrying capacity: 2 A at 40 °C
Rated voltage: 30 V
Insulation resistance: min. 100 MOhm
Mechanical data
Life - Number of mating cycles: min. 100
Maximum operating bending radius [mm]: 59 mm
Alternating bending radius: 59 mm
acceleration: 5 m/s²
Materials and material properties
Material - Conductor: Cu (copper)
Material - Conductor Insulation: polypropylene
Material - Cable jacket: PUR
Material - Body interface 1: Plastics
Material - Contact interface 1: CuSn (tin bronze)
Material - Contact finish interface 1: Au (gold)
Material - Contact carriers interface 1: Plastics
Material - Union nut interface 1: CuZnPb (brass)
Material - Union nut finish interface 1: Ni (nickel)
Flame retardancy: yes
Halogen free: yes
Oil resistance: yes
UV-resistance: yes
drag chain suitable: yes
torsional: yes
RoHS: compliant
