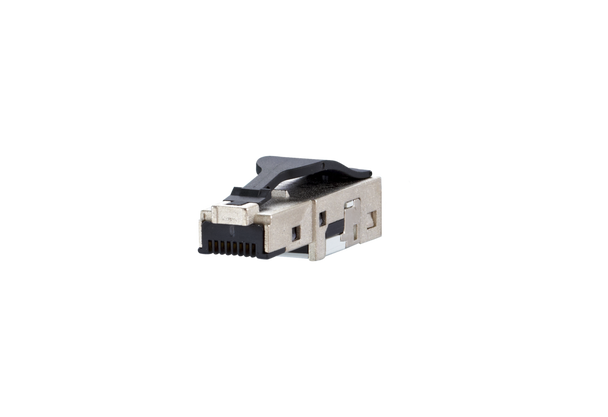

Metz Connect 1401400812-E. E-DAT RJ45 field plug short Cat.6 Class EA

No reviews yet Write a Review
$0.00
Metz Connect 1401400812-E E-DAT RJ45 field plug short Cat.6 Class EA | American Cable Assemblies
Metz Connect 1401400812-E. E-DAT RJ45 field plug short Cat.6 Class EA
SKU:
MTZ1401400812-E
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Design:
plug
RoHS:
compliant
EAN:
4251394609881

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • Cat.6 class EA plug to be assembled in the field
  • compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
  • 8-wire RJ45 plug for AWG 22 to be assembled in the field
  • connection of AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible
  • solid wire Cu conductor diameter 0.409 - 0.64 mm
  • stranded copper wire diameter from 0.48 to 0.76 mm
  • conductor diameter up to 1.6 mm
  • cable jacket from 5.5 to 8.5 mm
  • consists of only 2 parts
  • easy assembly - connection without special tools
  • zinc die-cast housing for industrial use
  • with locking lever
  • variants: T568A, T568B, Industry

Resources

E-DAT RJ45 field plug short Cat.6 Class EA | 1401400812-EView DataSheet

Specifications

General Data
Fields of application:
  • Industrial Ethernet
Mechanical measurement according to MICE: M1
Ingress measurement according to MICE: I1
Climatic measurement according to MICE: C1
Electromagnetic measurement according to MICE: E2
Design: plug
Shielding: shielded
Transmission technology: Copper
Color: metallike
Dimension [Length] (mm): 40.22 mm
Dimension [Width] (mm): 12.9 mm
Dimension [Height] (mm]: 14.7 mm
Dimension [Length] (inch): 1.583 in.
Dimension [Width] (inch): 0.508 in.
Dimension [Height] (inch): 0.579 in.
Field assembly ability: yes
Labeling option: on housing
Transmission characteristics
Category (ISO): 6
Class (ISO/IEC): EA
Category (TIA): 6
Remote Powering: yes
PoE: IEEE 802.3af
PoE plus: IEEE 802.3at
UPoE: yes
4PPoE: IEEE 802.3bt
HDBaseT: yes
Transmission rate up to 10 GBit: IEEE 802.3an
Connections/interfaces
Connector technology interface 1: IDC-connection
Connector technology interface 2: RJ45 plug
Number of ports interface 2: 1
Number of ports interface 2 equipped: 1
Number of positions/contacts interface 1: 8
Number of positions/contacts interface 2: 8P/8C
Conductor cross section solid wire [AWG] min-max: AWG 26/1 - AWG 22/1
Conductor cross section solid wire [mm²] min-max: 0,128 - 0,324 mm²
Conductor diameter solid wire [mm] min-max: 0,409 - 0,643 mm
Conductor diameter solid wire [inch] min-max: 0,016 - 0,025 in.
Conductor cross section stranded wire [AWG] min-max: AWG 26/7 - AWG 22/7
Conductor cross section stranded wire [mm²] min-max: 0,141 - 0,355 mm²
Conductor diameter stranded wire [mm] min-max: 0,483 - 0,762 mm
Conductor diameter stranded wire [inch] min-max: 0,019 - 0,03 in.
Core diameter (conductor with insulation) [mm max.]: 1.6 mm
Core diameter (conductor with insulation) [inch max.]: 0.063 in.
Cable sheath diameter [mm min.]: 5.5 mm
Cable sheath diameter [mm max.]: 8.50
Cable sheath diameter [inch min.]: 0.217 in.
Cable sheath diameter [inch max.]: 0.335
Cable access/outlet: 180°
Electrical characteristics
Current carrying capacity: max. 1 A
Contact resistance: max. 20 mOhm
Insulation resistance: min. 500 MOhm
Dielectric strength conductor-conductor (secondary) [V DC]: min. 1000 V DC
Dielectric strength conductor-shield [V DC]: min. 1500 V DC
Mechanical data
Mounting method: snap-in function
Insertion and withdrawal force: max. 30 N
Life - Number of mating cycles: min. 750
Materials and material properties
Material - Housing: GD-Zn (zinc die-cast)
Material - Insulation displacement contacts: CuSn (tin bronze)
Material - Finish of insulation displacement contacts: Sn (tin)
Material - Contact: CuSn (tin bronze)
Material - Contact finish: Ni + Au (nickel-gold)
Material - Latch: PA UL94 V0
Halogen free: yes
Material - Finish: Ni (nickel)
RoHS: compliant
Environmental conditions
Temperature - Storage °C [min.]: -40 °C
Temperature - Storage °C [max.]: 70 °C
Temperature - Storage °F [min.]: -40 °F
Temperature - Storage °F [max.]: 158 °F
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 70 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 158 °F
Particulate ingress: IP2X
Liquid ingress/immersion: IPX0
