Description
- IP67 wall outlets for flexible connection of networks in industrial areas
- flange with clamp lock to IEC 61076-3-106 Var. 5
- unequipped - without inserts
- for wall and floor mounting
- aluminum housing made of AL-Si 12
- solid powder coating in RAL 7001
- with 1 or 2 ports, completely with flange covers
- straight and right cable outlet (if cable feed from the bottom)
- measures for 1 port: 75 x 78 x 57 mm (without flanges and cable glands)

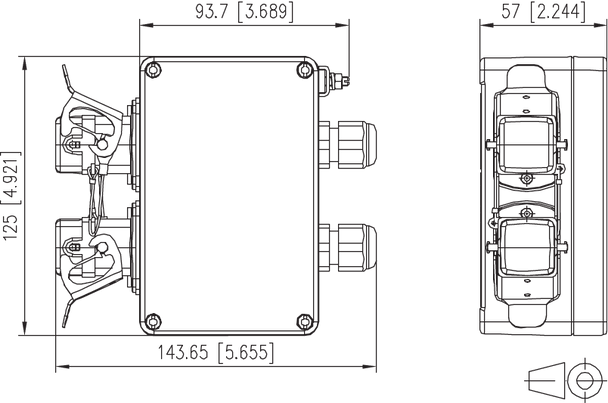

- measures for 2 ports 124 x 78 x 57 mm (without flanges and cable glands)
- matching inserts: E-DAT Industry RJ45 field jack insert (T568A, T568B or Profinet), E-DAT Industry RJ45 coupler insert or E-DAT Industry USB coupler insert
Resources
E-DAT Industry IP67 V5 2 port metal surface mount housing | 1401060320ME | View DataSheet |
---|
