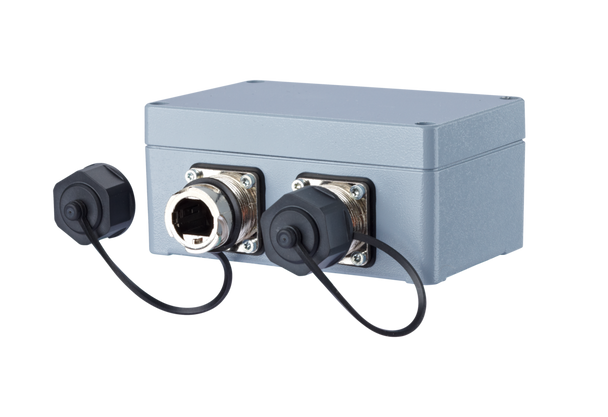

Metz Connect 1401010620ME. E-DAT Industry IP67 V1 2 port metal surface mount housing

No reviews yet Write a Review
$313.34
Metz Connect 1401010620ME E-DAT Industry IP67 V1 2 port metal surface mount housing | American Cable Assemblies
Metz Connect 1401010620ME. E-DAT Industry IP67 V1 2 port metal surface mount housing
Metz Connect 1401010620ME. E-DAT Industry IP67 V1 2 port metal surface mount housing
SKU:
MTZ1401010620ME
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
IP protection level 1:
IP6X
IP protection level 2:
IPX7
RoHS:
compliant
EAN:
4250184116479
$313.34

Frequently Bought Together:

Metz Connect 1401010620ME E-DAT Industry IP67 V1 2 port metal surface mount housing | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

  • IP67 wall outlets for flexible connection of networks in industrial areas
  • 2 complete ports with flange covers and cable glands
  • with the output directions pointing straight downwards (with cable feed from above) or output direction to right (with cable feed from above)
  • metal flange with bayonet to ISO/IEC 24702 and IEC 61076-3-106 standards, var. 1
  • unequipped, without inserts
  • for wall and floor mounting
  • aluminum housing made of AL-Si 12
  • solid powder coating in RAL 7001

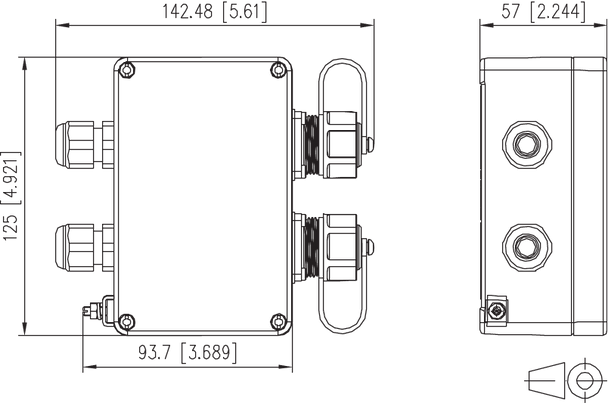

  • dimensions, 2 ports: 124 x 78 x 57 mm (without flanges and cable glands)
  • matching inserts: E-DAT Industry RJ45 field jack insert (T568A, T568B or Profinet), E-DAT Industry RJ45 coupler insert, E-DAT Industry USB coupler insert, OpDAT Industry SC-RJ/2SC coupler insert or OpDAT Industry LC-D coupler insert

Resources

E-DAT Industry IP67 V1 2 port metal surface mount housing | 1401010620MEView DataSheet
