Description

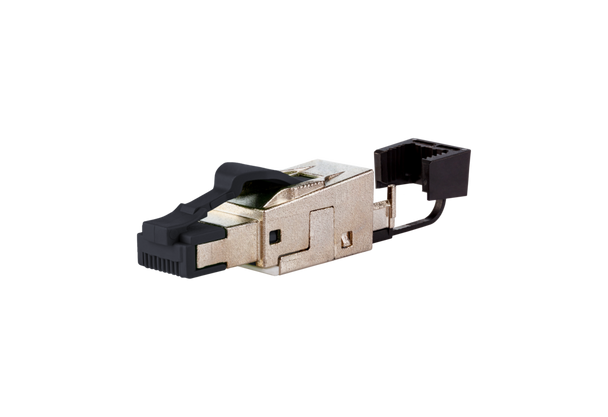

- Cat.6A class EA RJ45 plug to be assembled in the field
- fully shielded and multi-port capable
- straight (180°) cable feed
- easy assembly - connection without special tools
- wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
- wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.409 to 0.64 mm
- transmission characteristics Cat.6A according to ISO/IEC 11801
- compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
- degree of protection IP20
- for cable jacket diameter from 5.5 to 9.5 mm
- zinc die-cast housing for industrial use consists of only 2 parts
- strain relief by latching clip directly on the stuffer cap
- protected locking hook
- reconnectable
Resources
| C6A RJ45 field plug pro (100 pcs) | 130E405032-K | View DataSheet |
|---|
Specifications
| Fields of application: |
|
|---|---|
| Mechanical measurement according to MICE: | M1 |
| Ingress measurement according to MICE: | I1 |
| Climatic measurement according to MICE: | C1 |
| Electromagnetic measurement according to MICE: | E2 |
| Design: | plug |
| Shielding: | shielded |
| Transmission technology: | Copper |
| Color: | black |
| Dimension [Length] (mm): | 49.8 mm |
| Dimension [Width] (mm): | 13.8 mm |
| Dimension [Height] (mm]: | 16.5 mm |
| Dimension [Length] (inch): | 1.961 in. |
| Dimension [Width] (inch): | 0.543 in. |
| Dimension [Height] (inch): | 0.65 in. |
| Field assembly ability: | yes |
| Labeling option: | on housing |
| Marking option: | by latching clip |
| Category (ISO): | 6A |
|---|---|
| Class (ISO/IEC): | EA |
| Category (TIA): | 6A |
| Remote Powering: | yes |
| PoE: | IEEE 802.3af |
| PoE plus: | IEEE 802.3at |
| UPoE: | yes |
| 4PPoE: | IEEE 802.3bt |
| HDBaseT: | yes |
| Transmission rate up to 10 GBit: | IEEE 802.3an |
| Connector technology interface 1: | IDC-connection |
|---|---|
| Connector technology interface 2: | RJ45 plug |
| Number of ports interface 2: | 1 |
| Number of ports interface 2 equipped: | 1 |
| Number of positions/contacts interface 1: | 8 |
| Number of positions/contacts interface 2: | 8P/8C |
| Conductor cross section solid wire [AWG] min-max: | AWG 26/1 - AWG 22/1 |
| Conductor cross section solid wire [mm²] min-max: | 0,128 - 0,324 mm² |
| Conductor diameter solid wire [mm] min-max: | 0,409 - 0,643 mm |
| Conductor diameter solid wire [inch] min-max: | 0,016 - 0,025 in. |
| Conductor cross section stranded wire [AWG] min-max: | AWG 27/7 - AWG 22/7 |
| Conductor cross section stranded wire [mm²] min-max: | 0,111 - 0,355 mm² |
| Conductor diameter stranded wire [mm] min-max: | 0,457 - 0,762 mm |
| Conductor diameter stranded wire [inch] min-max: | 0,018 - 0,03 in. |
| Cable sheath diameter [mm min.]: | 5.5 mm |
| Cable sheath diameter [mm max.]: | 10.50 |
| Cable sheath diameter [inch min.]: | 0.217 in. |
| Cable sheath diameter [inch max.]: | 0.413 |
| Cable access/outlet: | 180° |
| Reconnectibility: | yes, if cross section is greater or the same |
| Shield connection: | flexible contact spring |
| Current carrying capacity: | max. 1 A |
|---|---|
| Rated voltage: | max. 50 V |
| Contact resistance: | max. 20 mOhm |
| Insulation resistance: | min. 500 MOhm |
| Dielectric strength conductor-conductor (secondary) [V DC]: | 1000 V DC |
| Dielectric strength conductor-shield [V DC]: | 1500 V DC |
| Mounting method: | snap-in function |
|---|---|
| Insertion and withdrawal force: | max. 20 N |
| Life - Number of mating cycles: | min. 750 |
| Position/mounting of latch standard installation position: |
top |
| strain relief: | latching clip |
| Material - Housing: | GD-Zn (zinc die-cast) |
|---|---|
| Material - Contact: | CuSn (tin bronze) |
| Material - Contact finish: | Ni + Au (nickel-gold) |
| Material - Latch: | Plastics |
| Halogen free: | yes |
| Material - Finish: | Ni (nickel) |
| RoHS: | compliant |
| Temperature - Storage °C [min.]: | -40 °C |
|---|---|
| Temperature - Storage °C [max.]: | 85 °C |
| Temperature - Storage °F [min.]: | -40 °F |
| Temperature - Storage °F [max.]: | 185 °F |
| Temperature - Operating °C [min.]: | -40 °C |
| Temperature - Operating °C [max.]: | 85 °C |
| Temperature - Operating °F [min.]: | -40 °F |
| Temperature - Operating °F [max.]: | 185 °F |
| Particulate ingress: | IP2X |
| Liquid ingress/immersion: | IPX0 |
