Description

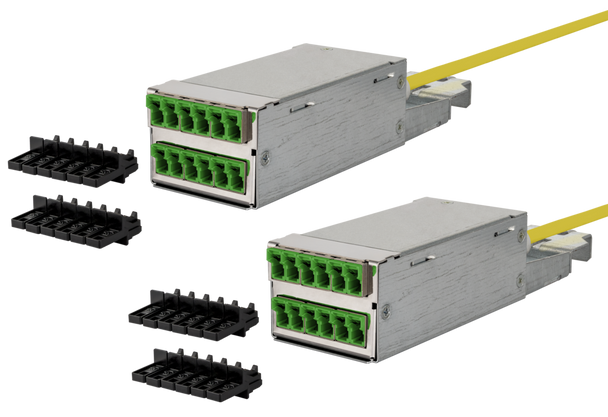

- DCCS link consisting of a pre-assembled cable with DCCS housings connected at both ends.
- housing at the front with six E2000 duplex couplings each
- mini breakout cable with 12 fixed fibers, cable diameter 6.9 mm
- assignment/polarity: crossed (standard) or uncrossed
- easy front patching with duplex cables
- easy mounting/dismounting in DCCS subrack (19 inch, 1 U)
- delivery with serial number and measurement protocol
- housing: galvanized sheet steel, stainless steel front, strain relief via cable gland
- customer specific cable length between 2 and 999 m
- variants: blue (SM), green (SM APC), lime green (OM5), violet (OM4)
- all available variants can be created with the configurator
Resources
| DCCS link OS2 6xE2000-D APC/6xE2000-D APC | 130D2F9QQBXXXE | View DataSheet |
|---|
