Description

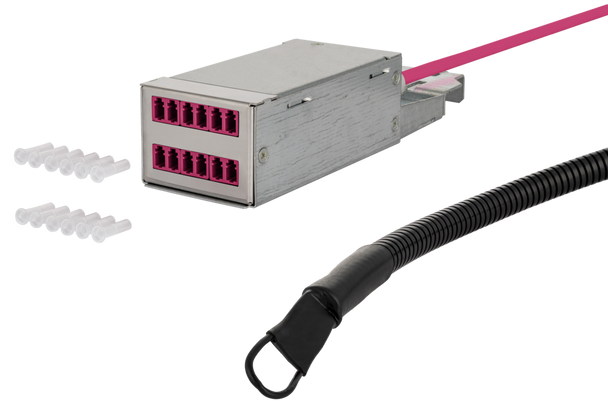

- DCCS link consisting of a pre-assembled cable with DCCS housing mounted on one end. The second end is protected by a dismantle measure.
- The insertion aid allows safe installation even in narrow cable ducts. The cable end provided with connectors can then be installed in a DCCS assembly as well as in e.g. 19 inch patch panels.
- housing front side with six LC duplex couplings
- mini breakout cable with 12 fixed fibers, cable diameter 6.9 mm
- assignment/polarity: freely selectable when switching.
- easy front patching with duplex cables
- easy mounting/dismounting in DCCS subrack (19 inch, 1 U)
- delivery with serial number and measurement protocol
- housing: galvanized sheet steel, stainless steel front, strain relief via cable gland
- customer specific cable length between 2 and 999 m
- variants: blue (SM), green (SM APC), lime green (OM5), violet (OM4), aqua (OM3)
- all available variants can be created with the configurator
Resources
| DCCS link VIK OM4 6xLC-D/6xLC-D | 130D2F7JJ5XXXN | View DataSheet |
|---|
