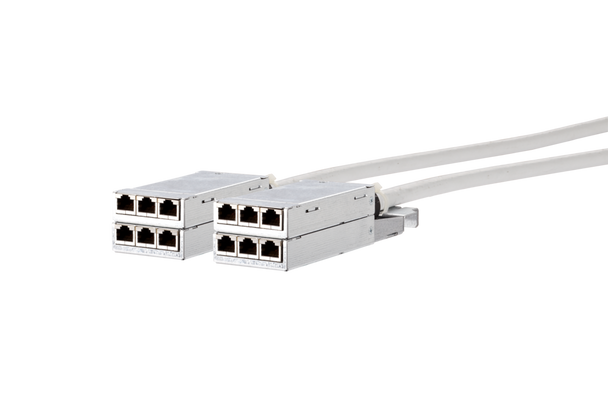

Metz Connect 130D2CL1XXXE. DCCS2 C6A PL26

No reviews yet Write a Review
$0.00
Metz Connect 130D2CL1XXXE DCCS2 C6A PL26 | American Cable Assemblies
Metz Connect 130D2CL1XXXE. DCCS2 C6A PL26
SKU:
MTZ130D2CL1XXXE
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Interface 1:
LSA terminal block
RoHS:
compliant

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • DCCS2 class EA Permanent Link consisting of two 6-port RJ45 subassemblies connected to a 24-pair installation cable AWG26/1
  • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
  • compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1, GHMT certified
  • tested: components up to 600 MHz, link up to 800 MHz
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT with reduced temperature range
  • Alien Next optimized, shielded jacks
  • the locking levers of patch cords connected to DCCS2 subassemblies show upwards and are easy to handle at any time
  • solid and refined assembly housing
  • shield tap for installation cable separate from strain relief
  • cable diameter less than 14 mm
  • short links with less then 5 m are also available
  • delivery with serial number and 6 Permanent Link measurement reports
  • mounting version: DCCS2
  • available in prefabricated, customer specific lengths - replace the xxx in the part number by the length - examples: 050 = 5.0 m; 100 = 10.0 m; 200 = 20.0 m; 500 = 50.0 m
  • maximum length 50 m

Resources

DCCS2 C6A PL26 | 130D2CL1XXXEView DataSheet
