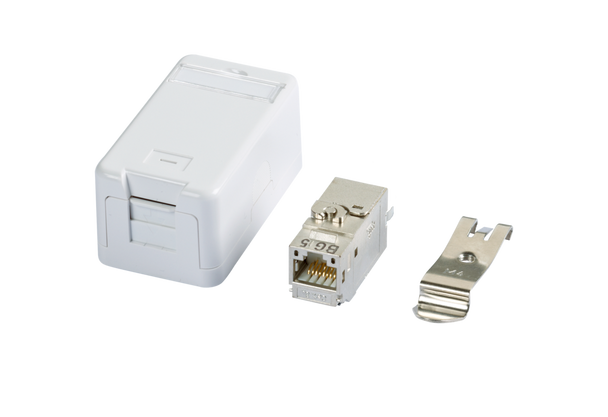

Metz Connect 130B21D1APL-E. Extension box 1 Port C6Amodul Keystone

• for the connection of the termination point meter position in the APZ area of the termination point line network (DMARC), equipped with C6_Amodul K 180°
• suitable for mounting on support rail in counter panel of general power supply below cover in room for additional applications to VDE-AR-N 4100
• failsafe contact with integrated dust protector slide, not sealable
• for connection of an MUC communication module
• certified to GHMT Cat.6_A re-embedded PVP
• component testing for Cat.6_A to ISO/IEC 11801-1, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, certified to GHMT
• compliance with class E_A up to 500 MHz to ISO/IEC 11801-1, DIN EN 50173-1
• tested: components up to 600 MHz, link up to 800 MHz
• suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
• connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
• migration to 25G-systems without special tools
• plug direction of module inclined at 90° to top hat rail
• strain relief snapped on to stuffer cap
• with label window for enclosed identification labels
• cover parts in pure white RAL 9010, glossy surface
• variants: APZ 1 port, APZ 2 port
