Description

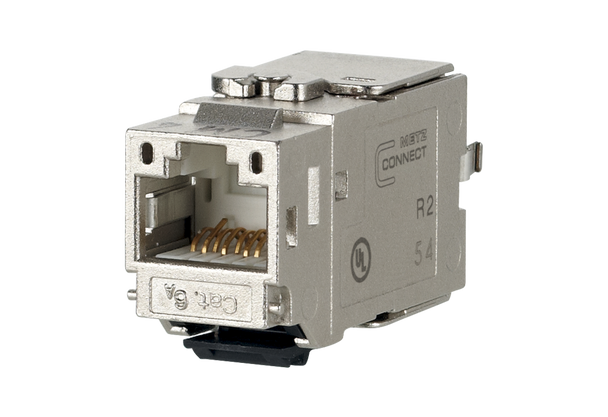

- modular Cat.6A termination unit RJ45
- mounting version: Keystone, 180° cable feed
- solid, one-piece and reusable module housing refined with zinc die-casting
- mounting without special tools, strain relief directly snapped on to stuffer cap
- migration to 25G-systems without special tools
- easy to install connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
- intelligent cable management in stuffer cap - also suitable for heavily twisted cables
- conductor assignment to T568A and T568B is directly printed on the stuffer cap
- certified to GHMT Cat.6A re-embedded PVP
- Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
- compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
- tested: component up to 600 MHz, link up to 800 MHz
Resources
| C6Amodul K 180° jack - keystone style | 130B21-E | View DataSheet |
|---|
Specifications
| Fields of application: |
|
|---|---|
| Mechanical measurement according to MICE: | M1 |
| Ingress measurement according to MICE: | I1 |
| Climatic measurement according to MICE: | C1 |
| Electromagnetic measurement according to MICE: | E2 |
| Design: | Jack |
| Shielding: | shielded |
| Transmission technology: | Copper |
| Wiring: | T568A, T568B |
| Color: | metallike |
| Dimension [Length] (mm): | 36 mm |
| Dimension [Width] (mm): | 14.7 mm |
| Dimension [Height] (mm]: | 20 mm |
| Dimension [Length] (inch): | 1.417 in. |
| Dimension [Width] (inch): | 0.579 in. |
| Dimension [Height] (inch): | 0.787 in. |
| Modularity: | yes |
| Field assembly ability: | yes |
| Labeling option: | on housing |
| Marking option: | by latching clip |
| Category (ISO): | 6A |
|---|---|
| Class (ISO/IEC): | EA |
| Category (TIA): | 6A |
| Remote Powering: | yes |
| PoE: | IEEE 802.3af |
| PoE plus: | IEEE 802.3at |
| UPoE: | yes |
| 4PPoE: | IEEE 802.3bt |
| HDBaseT: | yes |
| Transmission rate up to 10 GBit: | IEEE 802.3an |
| Connector technology interface 1: | IDC-connection |
|---|---|
| Connector technology interface 2: | RJ45-jack |
| Number of ports interface 2: | 1 |
| Number of ports interface 2 equipped: | 1 |
| Number of positions/contacts interface 1: | 8 |
| Number of positions/contacts interface 2: | 8P/8C |
| Conductor cross section solid wire [AWG] min-max: | AWG 26/1 - AWG 22/1 |
| Conductor cross section solid wire [mm²] min-max: | 0,128 - 0,324 mm² |
| Conductor diameter solid wire [mm] min-max: | 0,409 - 0,643 mm |
| Conductor diameter solid wire [inch] min-max: | 0,016 - 0,025 in. |
| Conductor cross section stranded wire [AWG] min-max: | AWG 26/7 - AWG 22/7 |
| Conductor cross section stranded wire [mm²] min-max: | 0,141 - 0,355 mm² |
| Conductor diameter stranded wire [mm] min-max: | 0,483 - 0,762 mm |
| Conductor diameter stranded wire [inch] min-max: | 0,019 - 0,03 in. |
| Cable sheath diameter [mm min.]: | 5.5 mm |
| Cable sheath diameter [mm max.]: | 10,00 mm |
| Cable sheath diameter [inch min.]: | 0.217 in. |
| Cable sheath diameter [inch max.]: | 0.394 |
| Cable access/outlet: | 180° |
| Current carrying capacity: | max. 1 A |
|---|---|
| Rated voltage: | max. 50 V |
| Contact resistance: | max. 20 mOhm |
| Through resistance: | max. 200 mOhm |
| Insulation resistance: | min. 500 MOhm |
| Dielectric strength conductor-conductor (secondary) [V DC]: | max. 1000 V DC |
| Cut-out: | Keystone |
|---|---|
| Mounting method: | snap-in function |
| Insertion and withdrawal force: | max. 30 N |
| Position/mounting of latch standard installation position: | bottom |
| strain relief: | latching clip |
| Material - Housing: | GD-Zn (zinc die-cast) |
|---|---|
| Material - Contact: | Spring steel |
| Material - Contact finish: | Au (gold) |
| Halogen free: | yes |
| Material - Finish: | Ni (nickel) |
| RoHS: | compliant |
