Metz Connect

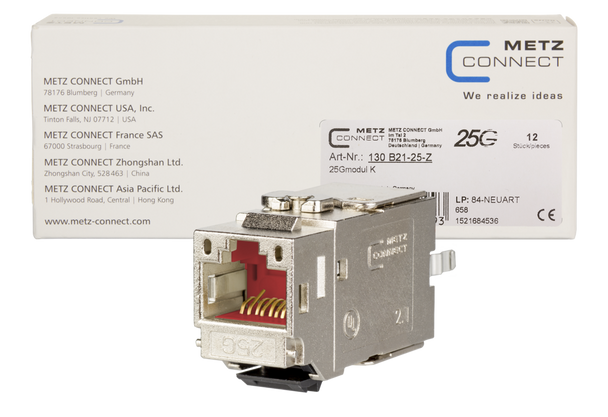

Metz Connect 130B21-25-Z. 25Gmodul - Keystone style (12 pcs)

No reviews yet Write a Review
$0.00
Metz Connect 130B21-25-Z 25Gmodul - Keystone style (12 pcs) | American Cable Assemblies
Metz Connect 130B21-25-Z. 25Gmodul - Keystone style (12 pcs)
Metz Connect 130B21-25-Z. 25Gmodul - Keystone style (12 pcs)
Metz Connect 130B21-25-Z. 25Gmodul - Keystone style (12 pcs)
SKU:
MTZ130B21-25-Z
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Design:
Jack
Cut-out:
Keystone
RoHS:
compliant
EAN:
4251394607993

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • certified by GHMT according to DTR-11801-9905 for 25GBASE-T in the Channel-Link with 30 m (50 m in preparation)
  • completely downward compatible due to compliance with class EA according to ISO/IEC 11801 and DIN EN 50173-1 (in permanent link up to 90 m, in channel link up to 100 m)
  • RJ45 according to IEC 60603-7-1, 2 mounting types: Module and Keystone
  • mounting without special tools, low mounting and connection time
  • migrating 10G-systems without special tools
  • connection of patch- and installations cords is possible for: AWG 26/7 - 22/7 and AWG 26/1 - 22/1
  • suitable for 25GBit/s Ethernet (IEEE 802.3bq) and 10 GBit/s Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP
  • solid, reusable module housing refined with zinc die-casting
  • intelligent cable management in stuffer caps - also suitable for heavily twisted cables - also easy installation in various applications
  • strain relief by a red latching clip directly on the stuffer cap
  • 360°-shield connection
  • dust protection cover (optional)
  • delivery in a 12-piece set, not available separately

Resources

25Gmodul - Keystone style (12 pcs) | 130B21-25-ZView DataSheet

Specifications

General Data
Fields of application:
  • office areas
Mechanical measurement according to MICE: M1
Ingress measurement according to MICE: I1
Climatic measurement according to MICE: C1
Electromagnetic measurement according to MICE: E2
Design: Jack
Shielding: shielded
Transmission technology: Copper
Wiring: T568A, T568B
Color: metallike
Dimension [Length] (mm): 36 mm
Dimension [Width] (mm): 14.7 mm
Dimension [Height] (mm]: 20 mm
Dimension [Length] (inch): 1.417 in.
Dimension [Width] (inch): 0.579 in.
Dimension [Height] (inch): 0.787 in.
Modularity: yes
Field assembly ability: yes
Marking option: by latching clip
Transmission characteristics
Class (ISO/IEC): EA
Remote Powering: yes
PoE: IEEE 802.3af
PoE plus: IEEE 802.3at
UPoE: yes
4PPoE: IEEE 802.3bt
HDBaseT: yes
Transmission rate up to 10 GBit: IEEE 802.3an
Connections/interfaces
Connector technology interface 1: IDC-connection
Connector technology interface 2: RJ45-jack
Number of ports interface 2: 1
Number of ports interface 2 equipped: 1
Number of positions/contacts interface 1: 8
Number of positions/contacts interface 2: 8P/8C
Conductor cross section solid wire [AWG] min-max: AWG 26/1 - AWG 22/1
Conductor cross section solid wire [mm²] min-max: 0,128 - 0,324 mm²
Conductor diameter solid wire [mm] min-max: 0,409 - 0,643 mm
Conductor diameter solid wire [inch] min-max: 0,016 - 0,025 in.
Conductor cross section stranded wire [AWG] min-max: AWG 26/7 - AWG 22/7
Conductor cross section stranded wire [mm²] min-max: 0,141 - 0,355 mm²
Conductor diameter stranded wire [mm] min-max: 0,483 - 0,762 mm
Conductor diameter stranded wire [inch] min-max: 0,019 - 0,03 in.
Cable access/outlet: 180°
Electrical characteristics
Current carrying capacity: max. 1 A
Rated voltage: max. 50 V
Contact resistance: max. 20 mOhm
Through resistance: max. 200 mOhm
Insulation resistance: min. 500 MOhm
Dielectric strength conductor-conductor (secondary) [V DC]: max. 1000 V DC
Mechanical data
Cut-out: Keystone
Mounting method: snap-in function
Insertion and withdrawal force: max. 30 N
Position/mounting of latch
standard installation position:		 bottom
strain relief: latching clip
Materials and material properties
Material - Housing: GD-Zn (zinc die-cast)
Material - Contact: Spring steel
Material - Contact finish: Au (gold)
Halogen free: yes
Material - Finish: Ni (nickel)
RoHS: compliant
