Metz Connect 130B11-E. C6Amodul 180° jack

No reviews yet Write a Review
$17.63

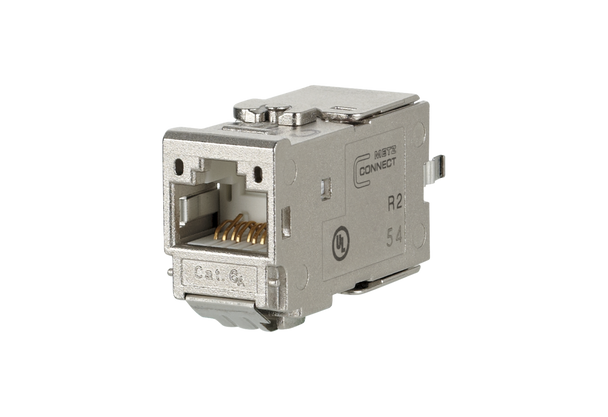

Metz Connect 130B11-E C6Amodul 180° jack | American Cable Assemblies
Metz Connect 130B11-E. C6Amodul 180° jack
Metz Connect 130B11-E. C6Amodul 180° jack
Metz Connect 130B11-E. C6Amodul 180° jack
Metz Connect 130B11-E. C6Amodul 180° jack
SKU:
MTZ130B11-E
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
Design:
Jack
Cut-out:
module
RoHS:
compliant
EAN:
4250184132646
$17.63

Frequently Bought Together:

Metz Connect 130B11-E C6Amodul 180° jack | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

  • modular Cat.6A termination unit RJ45
  • mounting version: MC module, 180° cable feed
  • solid, one-piece and reusable module housing refined with zinc die-casting
  • mounting without special tools, strain relief directly snapped on to stuffer cap
  • migration to 25G-systems without special tools
  • easy to install connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
  • intelligent cable management in stuffer cap - also suitable for heavily twisted cables
  • conductor assignment to T568A and T568B is directly printed on the stuffer cap
  • certified to GHMT Cat.6A re-embedded PVP
  • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
  • compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
  • tested: component up to 600 MHz, link up to 800 MHz

Resources

C6Amodul 180° jack | 130B11-EView DataSheet

Specifications

General Data
Fields of application:
  • office areas
Mechanical measurement according to MICE: M1
Ingress measurement according to MICE: I1
Climatic measurement according to MICE: C1
Electromagnetic measurement according to MICE: E2
Design: Jack
Shielding: shielded
Transmission technology: Copper
Wiring: T568A, T568B
Color: metallike
Dimension [Length] (mm): 36 mm
Dimension [Width] (mm): 14.7 mm
Dimension [Height] (mm]: 22.4 mm
Dimension [Length] (inch): 1.417 in.
Dimension [Width] (inch): 0.579 in.
Dimension [Height] (inch): 0.882 in.
Modularity: yes
Field assembly ability: yes
Labeling option: on housing
Marking option: by latching clip
Transmission characteristics
Category (ISO): 6A
Class (ISO/IEC): EA
Category (TIA): 6A
Remote Powering: yes
PoE: IEEE 802.3af
PoE plus: IEEE 802.3at
UPoE: yes
4PPoE: IEEE 802.3bt
HDBaseT: yes
Transmission rate up to 10 GBit: IEEE 802.3an
Connections/interfaces
Connector technology interface 1: IDC-connection
Connector technology interface 2: RJ45-jack
Number of ports interface 2: 1
Number of ports interface 2 equipped: 1
Number of positions/contacts interface 1: 8
Number of positions/contacts interface 2: 8P/8C
Conductor cross section solid wire [AWG] min-max: AWG 26/1 - AWG 22/1
Conductor cross section solid wire [mm²] min-max: 0,128 - 0,324 mm²
Conductor diameter solid wire [mm] min-max: 0,409 - 0,643 mm
Conductor diameter solid wire [inch] min-max: 0,016 - 0,025 in.
Conductor cross section stranded wire [AWG] min-max: AWG 26/7 - AWG 22/7
Conductor cross section stranded wire [mm²] min-max: 0,141 - 0,355 mm²
Conductor diameter stranded wire [mm] min-max: 0,483 - 0,762 mm
Conductor diameter stranded wire [inch] min-max: 0,019 - 0,03 in.
Cable sheath diameter [mm min.]: 5.5 mm
Cable sheath diameter [mm max.]: 10,00
Cable sheath diameter [inch min.]: 0.217 in.
Cable sheath diameter [inch max.]: 0.394
Cable access/outlet: 180°
Electrical characteristics
Current carrying capacity: max. 1 A
Rated voltage: max. 50 V
Contact resistance: max. 20 mOhm
Through resistance: max. 200 mOhm
Insulation resistance: min. 500 MOhm
Dielectric strength conductor-conductor (secondary) [V DC]: max. 1000 V DC
Mechanical data
Cut-out: module
Mounting method: snap-in function
Insertion and withdrawal force: max. 30 N
Position/mounting of latch
standard installation position:		 top
strain relief: latching clip
Materials and material properties
Material - Housing: GD-Zn (zinc die-cast)
Material - Contact: Spring steel
Material - Contact finish: Au (gold)
Halogen free: yes
Material - Finish: Ni (nickel)
RoHS: compliant
