Description
- unshielded Cat.6 class E UTP module
- suitable for 1 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
- compliance with class E according to ISO/IEC 11801, DIN EN 50173-1
- suitable for Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- easy to install connection of 2 to 4 pair data cables AWG 26/1 to 22/1 (solid wire) and stranded wires with 7 copper conductors AWG 26/7 to 22/7 to insulation displacement connectors (IDC
- optional strain relief with cable tie at UTP module
- installation shape: Keystone
- variants: designation of conductor colors marking to T568A and T568A, housing colors white or black
Resources

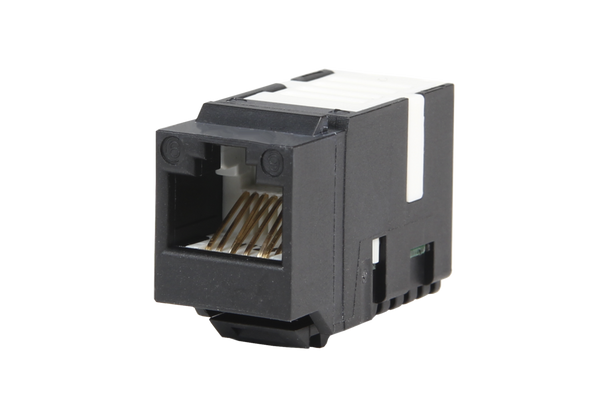

| UTP modul 8(8) Cat.6 black | 130A10-29-I-B1 | View DataSheet |
|---|
Specifications
| Mechanical measurement according to MICE: | M1 |
|---|---|
| Ingress measurement according to MICE: | I1 |
| Climatic measurement according to MICE: | C1 |
| Electromagnetic measurement according to MICE: | E1 |
| Design: | Jack |
| Shielding: | unshielded |
| Transmission technology: | Copper |
| Wiring: | T568A, T568B |
| Color: | black |
| Dimension [Length] (mm): | 36.55 mm |
| Dimension [Width] (mm): | 14.7 mm |
| Dimension [Height] (mm]: | 19.5 mm |
| Dimension [Length] (inch): | 1.439 in. |
| Dimension [Width] (inch): | 0.579 in. |
| Dimension [Height] (inch): | 0.768 in. |
| Modularity: | yes |
| Labeling option: | on housing |
| Category (ISO): | 6 |
|---|---|
| Class (ISO/IEC): | E |
| Category (TIA): | 6 |
| Remote Powering: | yes |
| PoE: | IEEE 802.3af |
| PoE plus: | IEEE 802.3at |
| UPoE: | yes |
| 4PPoE: | IEEE 802.3bt |
| HDBaseT: | yes |
| Connector technology interface 1: | IDC-connection |
|---|---|
| Connector technology interface 2: | RJ45-jack |
| Number of ports interface 2: | 1 |
| Number of ports interface 2 equipped: | 1 |
| Number of positions/contacts interface 1: | 8 |
| Number of positions/contacts interface 2: | 8P/8C |
| Conductor cross section solid wire [AWG] min-max: | AWG 26/1 - AWG 22/1 |
| Conductor cross section solid wire [mm²] min-max: | 0,128 - 0,324 mm² |
| Conductor diameter solid wire [mm] min-max: | 0,409 - 0,643 mm |
| Conductor diameter solid wire [inch] min-max: | 0,016 - 0,025 in. |
| Conductor cross section stranded wire [AWG] min-max: | AWG 26/7 - |
| Conductor cross section stranded wire [mm²] min-max: | 0,141 - mm² |
| Conductor diameter stranded wire [mm] min-max: | 0,483 - mm |
| Conductor diameter stranded wire [inch] min-max: | 0,019 - in. |
| Cable access/outlet: | 180° |
| Current carrying capacity: | max. 1 A |
|---|---|
| Rated voltage: | max. 50 V |
| Contact resistance: | max. 20 mOhm |
| Through resistance: | max. 200 mOhm |
| Insulation resistance: | min. 500 MOhm |
| Dielectric strength conductor-conductor (secondary) [V DC]: | min. 1000 V DC |
| Cut-out: | Keystone |
|---|---|
| Mounting method: | snap-in function |
| Insertion and withdrawal force: | max. 20 N |
| Life - Number of mating cycles: | min. 750 |
| Position/mounting of latch standard installation position: | bottom |
| strain relief: | with cable tie, attached to module |
| Material - Housing: | PA 6.6 UL94 V0 |
|---|---|
| Material - Contact: | CuSn (tin bronze) |
| Material - Contact finish: | Ni + Au (nickel-gold) |
| Halogen free: | yes |
| RoHS: | compliant |
| Temperature - Storage °C [min.]: | -40 °C |
|---|---|
| Temperature - Storage °C [max.]: | 70 °C |
| Temperature - Storage °F [min.]: | -40 °F |
| Temperature - Storage °F [max.]: | 158 °F |
| Temperature - Operating °C [min.]: | -40 °C |
| Temperature - Operating °C [max.]: | 70 °C |
| Temperature - Operating °F [min.]: | -40 °F |
| Temperature - Operating °F [max.]: | 158 °F |
