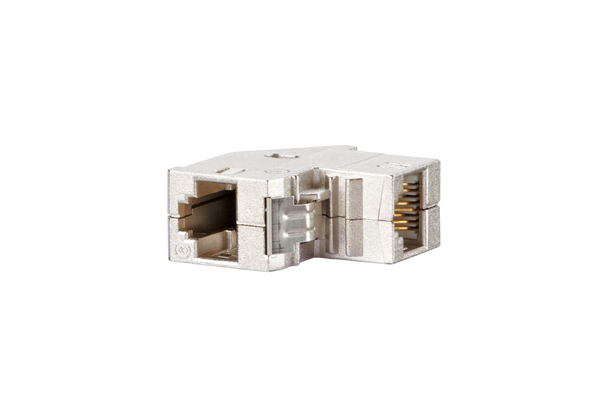

Metz Connect 1309A1-I. E-DAT modul coupler 8(8) 90° class EA

No reviews yet Write a Review
$26.47
Metz Connect 1309A1-I E-DAT modul coupler 8(8) 90° class EA | American Cable Assemblies
Metz Connect 1309A1-I. E-DAT modul coupler 8(8) 90° class EA
Metz Connect 1309A1-I. E-DAT modul coupler 8(8) 90° class EA
Metz Connect 1309A1-I. E-DAT modul coupler 8(8) 90° class EA
SKU:
MTZ1309A1-I
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
Design:
coupler / adapter (FO)
RoHS:
compliant
EAN:
4250184106623
$26.47

Frequently Bought Together:

Metz Connect 1309A1-I E-DAT modul coupler 8(8) 90° class EA | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

  • RJ45 cable coupler class EA
  • compliance with class EA to ISO/IEC 11801, DIN EN 50173-1
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
  • fully shielded 90° coupler made of refined zinc die-casting
  • especially suitable for consolidation points and cross-connect cabling
  • 2 mounting versions in a coupler, fits in module or keystone applications
  • for module design: Modul wall outlets, Modul face plates, Modul REG IP20, Industry built in flange EBM
  • for keystone design: Keystone face plates, Industry built in flange EBK

Resources

E-DAT modul coupler 8(8) 90° class EA | 1309A1-IView DataSheet

Specifications

General Data
Fields of application:
  • Consolidation points
Mechanical measurement according to MICE: M1
Ingress measurement according to MICE: I1
Climatic measurement according to MICE: C1
Electromagnetic measurement according to MICE: E2
Design: coupler / adapter (FO)
Shielding: shielded
Transmission technology: Copper
Color: metallike
Dimension [Length] (mm): 33.2 mm
Dimension [Width] (mm): 14.7 mm
Dimension [Height] (mm]: 33 mm
Dimension [Length] (inch): 1.307 in.
Dimension [Width] (inch): 0.579 in.
Dimension [Height] (inch): 1.299 in.
Modularity: yes
Labeling option: on housing
Transmission characteristics
Class (ISO/IEC): EA
Remote Powering: yes
PoE: IEEE 802.3af
PoE plus: IEEE 802.3at
UPoE: yes
HDBaseT: yes
Transmission rate up to 10 GBit: IEEE 802.3an
Connections/interfaces
Connector technology interface 1: RJ45-jack
Connector technology interface 2: RJ45-jack
Number of ports interface 2: 1
Number of ports interface 2 equipped: 1
Number of positions/contacts interface 1: 8P/8C
Number of positions/contacts interface 2: 8P/8C
Electrical characteristics
Current carrying capacity: max. 1 A
Rated voltage: max. 50 V
Contact resistance: max. 20 mOhm
Through resistance: max. 200 mOhm
Insulation resistance: min. 500 MOhm
Dielectric strength conductor-conductor (secondary) [V DC]: min. 1000 V DC
Mechanical data
Mounting method: snap-in function
Insertion and withdrawal force: max. 20 N
Position/mounting of latch
standard installation position:		 top
Materials and material properties
Material - Housing: GD-Zn (zinc die-cast)
Material - Contact: CuSn (tin bronze)
Material - Contact finish: Ni + Au (nickel-gold)
Halogen free: yes
Material - Finish: Ni (nickel)
RoHS: compliant
Environmental conditions
Temperature - Storage °C [min.]: -40 °C
Temperature - Storage °C [max.]: 70 °C
Temperature - Storage °F [min.]: -40 °F
Temperature - Storage °F [max.]: 158 °F
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 70 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 158 °F
