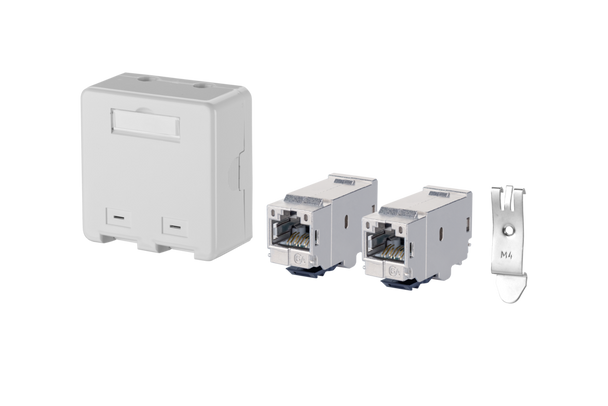

Metz Connect 1309A0D2APLKE. Extension box 2 port E-DAT adapter

• Plug and play solution for the connection of the termination point meter position in the APZ area of the termination point line network (DMARC)
• equipped with E-DAT modul coupler
• suitable for mounting on support rail in counter panel of general power supply below cover in room for additional applications to VDE-AR-N 4100
• failsafe contact with integrated dust protector slide, not sealable
• for connection of an MUC communication module
• compliance with class E_A up to 500 MHz to ISO/IEC 11801-1, DIN EN 50173-1
• suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE) and HDBaseT
• plug direction of module inclined at 90° to top hat rail
• with label window for enclosed identification labels
• cover parts in pure white RAL 9010, glossy surface
• variants: APZ 1 port, APZ 2 port
• Attention: only suitable in combination with METZ CONNECT Ultra Flex patch cables 13084Uxxxx-E in the rear connection area
