Description

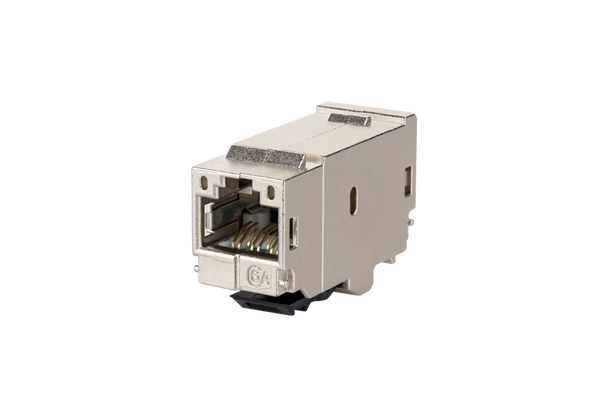

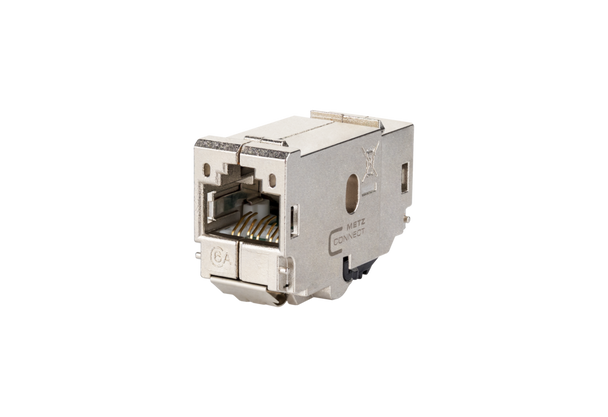

- RJ45 cable coupler class EA
- compliance with class EA to ISO/IEC 11801, DIN EN 50173-1
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- fully shielded 180° coupler made of refined zinc die-casting
- especially suitable for consolidation points and cross-connect cabling
- 2 mounting versions in a coupler, fits in module or keystone applications
- for modul design: modul wall outlets, modul face plates, 19 inch modul frame, Modul surface mount housing, E-DATmodul REG, Modul REG IP20, Industry built in flange EBM
- for keystone design: keystone wall outlets, keystone face plates, 19 inch keystone frame, Keystone surface mount housing, Subway Keystone, Keystone REG IP20, Industry built in flange EBK
Resources
| E-DAT modul coupler 8(8) 180° class EA | 1309A0-I | View DataSheet |
|---|
Specifications
| Fields of application: |
|
|---|---|
| Mechanical measurement according to MICE: | M1 |
| Ingress measurement according to MICE: | I1 |
| Climatic measurement according to MICE: | C1 |
| Electromagnetic measurement according to MICE: | E3 |
| Design: | coupler / adapter (FO) |
| Shielding: | shielded |
| Transmission technology: | Copper |
| Color: | metallike |
| Dimension [Length] (mm): | 36 mm |
| Dimension [Width] (mm): | 14.7 mm |
| Dimension [Height] (mm]: | 20 mm |
| Dimension [Length] (inch): | 1.417 in. |
| Dimension [Width] (inch): | 0.579 in. |
| Dimension [Height] (inch): | 0.787 in. |
| Modularity: | yes |
| Labeling option: | on housing |
| Class (ISO/IEC): | EA |
|---|---|
| Remote Powering: | yes |
| PoE: | IEEE 802.3af |
| PoE plus: | IEEE 802.3at |
| UPoE: | yes |
| HDBaseT: | yes |
| Transmission rate up to 10 GBit: | IEEE 802.3an |
| Connector technology interface 1: | RJ45-jack |
|---|---|
| Connector technology interface 2: | RJ45-jack |
| Number of ports interface 2: | 1 |
| Number of ports interface 2 equipped: | 1 |
| Number of positions/contacts interface 1: | 8P/8C |
| Number of positions/contacts interface 2: | 8P/8C |
| Current carrying capacity: | max. 1 A |
|---|---|
| Rated voltage: | max. 50 V |
| Contact resistance: | max. 20 mOhm |
| Insulation resistance: | min. 500 MOhm |
| Mounting method: | snap-in function |
|---|---|
| Insertion and withdrawal force: | max. 20 N |
| Position/mounting of latch standard installation position: | top |
| Material - Housing: | GD-Zn (zinc die-cast) |
|---|---|
| Material - Contact: | CuSn (tin bronze) |
| Material - Contact finish: | Ni + Au (nickel-gold) |
| Halogen free: | yes |
| Material - Finish: | Ni (nickel) |
| RoHS: | compliant |
| Temperature - Storage °C [min.]: | -40 °C |
|---|---|
| Temperature - Storage °C [max.]: | 70 °C |
| Temperature - Storage °F [min.]: | -40 °F |
| Temperature - Storage °F [max.]: | 158 °F |
| Temperature - Operating °C [min.]: | -40 °C |
| Temperature - Operating °C [max.]: | 70 °C |
| Temperature - Operating °F [min.]: | -40 °F |
| Temperature - Operating °F [max.]: | 158 °F |
