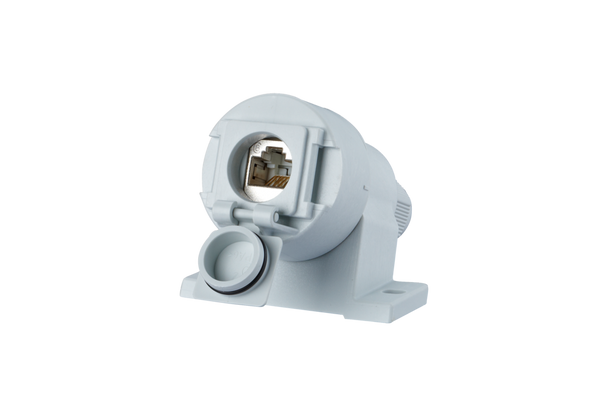

Metz Connect 1309510003-E. E-DAT Industry IP67 V6 surface mount housing, 1 port Cat.6A - C6Amodul

No reviews yet Write a Review
$0.00
Metz Connect 1309510003-E E-DAT Industry IP67 V6 surface mount housing,
1 port Cat.6A - C6Amodul | American Cable Assemblies
Metz Connect 1309510003-E. E-DAT Industry IP67 V6 surface mount housing, 1 port Cat.6A - C6Amodul
Metz Connect 1309510003-E. E-DAT Industry IP67 V6 surface mount housing, 1 port Cat.6A - C6Amodul
Metz Connect 1309510003-E. E-DAT Industry IP67 V6 surface mount housing, 1 port Cat.6A - C6Amodul
SKU:
MTZ1309510003-E
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
IP protection level 1:
IP6X
IP protection level 2:
IPX7
RoHS:
compliant
EAN:
4250184162339

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • RJ45 termination unit C6Amodul in flange housing to ISO/IEC 24702 and IEC 61076-3-106 variant 6
  • certified to GHMT Cat.6A re-embedded PVP
  • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
  • compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
  • tested: component up to 600 MHz, link up to 800 MHz
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
  • easy to install connection of data lines AWG 24/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
  • intelligent cable management in stuffer cap - also suitable for heavily twisted cables
  • conductor assignment to T568A and T568B is directly printed on the stuffer cap
  • complies with ingress protection IP67 when plugged in
  • plug face according to IEC 61076-3-106 (variant 6)
  • large 360° shield contact
  • connection of RJ45 plugs available on the market (no IP protection)
  • mounting without special tools, strain relief directly snapped on to stuffer cap
  • color: light gray RAL 7035

Resources

E-DAT Industry IP67 V6 surface mount housing, 1 port Cat.6A - C6Amodul | 1309510003-EView DataSheet
