Description

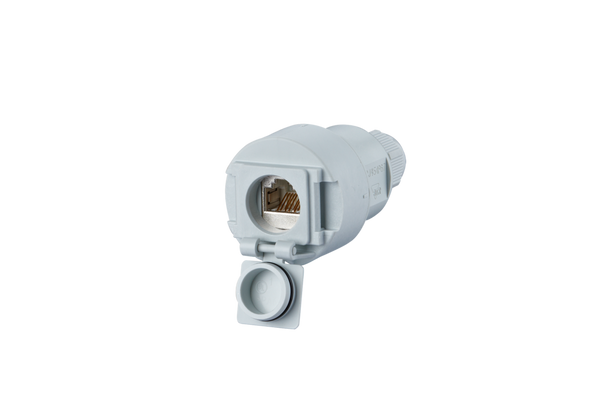

- RJ45 termination unit E-DAT modul in flange housing to ISO/IEC 24702 and IEC 61076-3-106 var. 6
- Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
- compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
- easy to install connection of 2 to 4-pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)
- marking of conductor assignment to T568A and T568B
- complies with ingress protection IP67 when plugged in
- plug face pursuant to IEC 61076-3-106 (variant 6)
- large 360° shield contact
- can be used as cable coupler (KK)
- connection of RJ45 plugs available on the market (no IP protection)
- easy, time-saving mounting
- color: RAL 7035 (light gray)
Resources
| E-DAT Industry IP67 V6 cable coupler, 1 port Cat.6A - E-DAT modul | 1309415003-E | View DataSheet |
|---|
