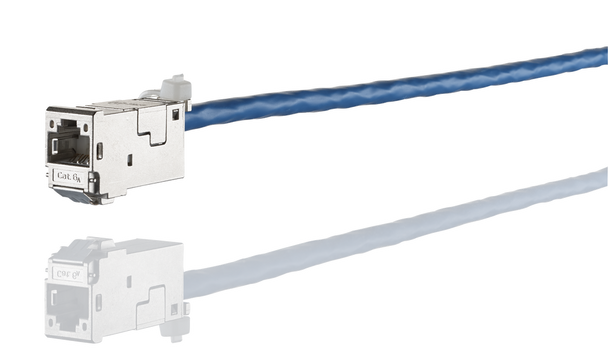

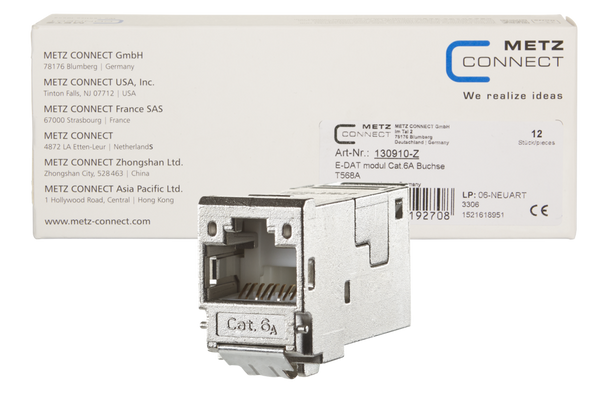

Metz Connect 130910-Z. E-DAT modul Cat.6A 8(8) jack, (12 pcs)

No reviews yet Write a Review
$0.00
Metz Connect 130910-Z E-DAT modul Cat.6A 8(8) jack, (12 pcs) | American Cable Assemblies
Metz Connect 130910-Z. E-DAT modul Cat.6A 8(8) jack, (12 pcs)
Metz Connect 130910-Z. E-DAT modul Cat.6A 8(8) jack, (12 pcs)
Metz Connect 130910-Z. E-DAT modul Cat.6A 8(8) jack, (12 pcs)
Metz Connect 130910-Z. E-DAT modul Cat.6A 8(8) jack, (12 pcs)
SKU:
MTZ130910-Z
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Design:
Jack
Cut-out:
module
RoHS:
compliant
EAN:
4251122192708

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • modular termination unit Cat.6A, RJ45
  • Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
  • compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
  • tested: Link up to 500 MHz
  • suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
  • easy to install connection of 2 to 4 pair data lines
  • AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)

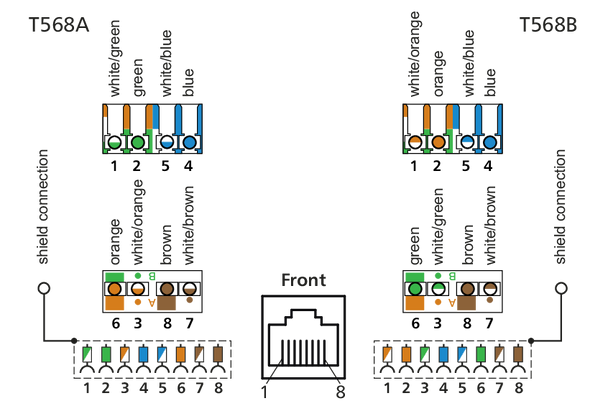

  • marking of conductor assignment to T568A and T568B
  • easy and fast insertion of wire pairs in E-DAT modul stuffer cap
  • module housing made of refined zinc die-casting
  • mounting without special tools
  • strain relief with cable tie at the module
  • dust cover amounting option
  • mounting version: Modul
  • cable feed 180°
  • delivery in a 12-piece set, not available separately
