Metz Connect 130909-I. UAE modul Cat.6 jack white

No reviews yet Write a Review
$5.72
Metz Connect 130909-I UAE modul Cat.6 jack white | American Cable Assemblies
Metz Connect 130909-I. UAE modul Cat.6 jack white
Metz Connect 130909-I. UAE modul Cat.6 jack white
SKU:
MTZ130909-I
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
Design:
Jack
Cut-out:
module
RoHS:
compliant
EAN:
4250184105466
$5.72

Frequently Bought Together:

Metz Connect 130909-I UAE modul Cat.6 jack white | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

  • unshielded Cat.6 class E UAE module
  • for Gigabit Ethernet
  • compliance with class E according to ISO/IEC 11801, DIN EN 50173-1
  • suitable for Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
  • easy to install connection of 2 to 4-pair data lines AWG 24/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 to BTR 8-fold insulation displacement connectors (IDC)
  • optional strain relief with cable tie at UAE module
  • installation shape: module
  • variants: marking of conductor assignment to T568A and T568B

Resources

UAE modul Cat.6 jack white | 130909-IView DataSheet

Specifications

General Data
Mechanical measurement according to MICE: M1
Ingress measurement according to MICE: I1
Climatic measurement according to MICE: C1
Electromagnetic measurement according to MICE: E1
Design: Jack
Shielding: unshielded
Transmission technology: Copper
Wiring: T568A and T568B
Color: white

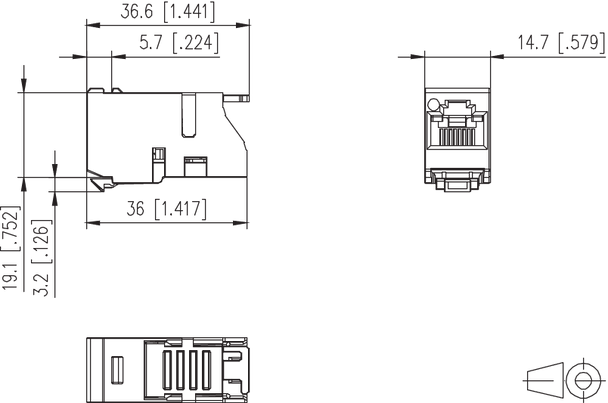

Dimension [Length] (mm): 36 mm
Dimension [Width] (mm): 14.7 mm
Dimension [Height] (mm]: 22.3 mm
Dimension [Length] (inch): 1.417 in.
Dimension [Width] (inch): 0.579 in.
Dimension [Height] (inch): 0.878 in.
Modularity: yes
Labeling option: on housing
Transmission characteristics
Category (ISO): 6
Class (ISO/IEC): E
Category (TIA): 6
Remote Powering: yes
PoE: IEEE 802.3af
PoE plus: IEEE 802.3at
UPoE: yes
HDBaseT: yes
Transmission rate up to 10 GBit: IEEE 802.3an
Connections/interfaces
Connector technology interface 1: IDC-connection
Connector technology interface 2: RJ45-jack
Number of ports interface 2: 1
Number of ports interface 2 equipped: 1
Number of positions/contacts interface 1: 8
Number of positions/contacts interface 2: 8P/8C
Conductor cross section solid wire [AWG] min-max: AWG 24/1 - AWG 22/1
Conductor cross section solid wire [mm²] min-max: 0,205 - 0,324 mm²
Conductor diameter solid wire [mm] min-max: 0,511 - 0,643 mm
Conductor diameter solid wire [inch] min-max: 0,02 - 0,025 in.
Conductor cross section stranded wire [AWG] min-max: AWG 26/7 - AWG 22/7
Conductor cross section stranded wire [mm²] min-max: 0,141 - 0,355 mm²
Conductor diameter stranded wire [mm] min-max: 0,483 - 0,762 mm
Conductor diameter stranded wire [inch] min-max: 0,019 - 0,03 in.
Cable access/outlet: 180°
Electrical characteristics
Current carrying capacity: max. 1 A
Rated voltage: max. 50 V
Contact resistance: max. 20 mOhm
Through resistance: max. 200 mOhm
Insulation resistance: min. 500 MOhm
Dielectric strength conductor-conductor (secondary) [V DC]: min. 1000 V DC
Mechanical data
Cut-out: module
Mounting method: snap-in function
Insertion and withdrawal force: max. 20 N
Life - Number of mating cycles: min. 750
Position/mounting of latch
standard installation position:		 top
strain relief: with cable tie, attached to module
Materials and material properties
Material - Housing: PA 6.6 UL94 V0
Material - Contact: CuSn (tin bronze)
Material - Contact finish: Ni + Au (nickel-gold)
Halogen free: yes
RoHS: compliant
Environmental conditions
Temperature - Storage °C [min.]: -40 °C
Temperature - Storage °C [max.]: 70 °C
Temperature - Storage °F [min.]: -40 °F
Temperature - Storage °F [max.]: 158 °F
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 70 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 158 °F
