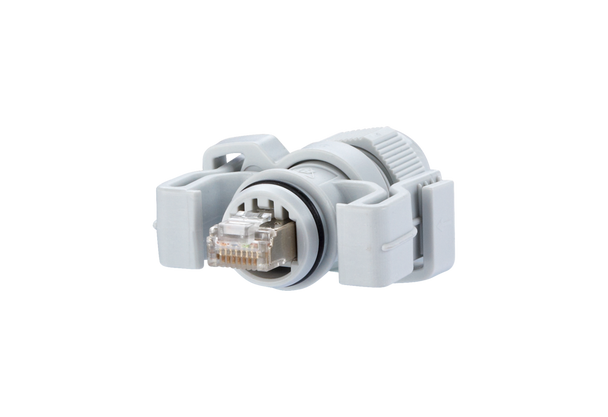

Metz Connect 130906-03-E. E-DAT Industry IP67 V6 plug

No reviews yet Write a Review
$32.09
Metz Connect 130906-03-E E-DAT Industry IP67 V6 plug | American Cable Assemblies
Metz Connect 130906-03-E. E-DAT Industry IP67 V6 plug
SKU:
MTZ130906-03-E
UPC:
4.25E+12
Minimum Purchase:
1 unit
Current Stock:
Design:
plug
RoHS:
compliant
EAN:
4250184105381
$32.09

Frequently Bought Together:

Metz Connect 130906-03-E E-DAT Industry IP67 V6 plug | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

  • Cat.6 class EA plug in plug housing according to standard IEC 61076-3-106 Var. 6
  • compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
  • suitable for 10 GBit Ethernet(IEEE 802.3an) and Remote Powering(PoE, PoE plus and UPoE) and HDBaseT
  • complies with ingress protection IP67 when plugged in
  • AWG 27/7 - 24/7 and AWG 24/1 connection possible
  • solid copper wire diameter from 0.36 to 0.51 mm
  • stranded copper wire diameter from 0.46 to 0.61 mm
  • conductor diameter from 0.85 to 1.05 mm
  • cable jacket diameter 5.5 to 6.2 mm can be connected
  • large 360° shield contact
  • locking clip can also be upgraded in its installed state
  • protected against unintentional opening by means of locking clip (also colored)
  • crimping of the internal and external conductors with professional crimp pliers in one process
  • professional crimping tool available in the tools section

Resources

E-DAT Industry IP67 V6 plug | 130906-03-EView DataSheet

Specifications

General Data
Fields of application:
  • Industrial Ethernet
Mechanical measurement according to MICE: M1
Ingress measurement according to MICE: I1
Climatic measurement according to MICE: C1
Electromagnetic measurement according to MICE: E2
Design: plug
Transmission technology: Copper
Color: light gray
Dimension [Length] (mm): 59.5 mm
Dimension [Width] (mm): 47.3 mm
Dimension [Height] (mm]: 21.9 mm
Dimension [Length] (inch): 2.343 in.
Dimension [Width] (inch): 1.862 in.
Dimension [Height] (inch): 0.862 in.
Labeling option: on housing
Transmission characteristics
Category (ISO): 6
Class (ISO/IEC): EA
Category (TIA): 6
Remote Powering: yes
PoE: IEEE 802.3af
PoE plus: IEEE 802.3at
UPoE: yes
HDBaseT: yes
Transmission rate up to 10 GBit: IEEE 802.3an
Connections/interfaces
Connector technology interface 1: IDC-connection
Connector technology interface 2: RJ45 plug
Number of ports interface 2: 1
Number of ports interface 2 equipped: 1
Number of positions/contacts interface 1: 8
Number of positions/contacts interface 2: 8P/8C
Conductor cross section stranded wire [AWG] min-max: AWG 27/7 - AWG 24/7
Conductor cross section stranded wire [mm²] min-max: 0,111 - 0,227 mm²
Conductor diameter stranded wire [mm] min-max: 0,457 - 0,61 mm
Conductor diameter stranded wire [inch] min-max: 0,018 - 0,024 in.
Core diameter (conductor with insulation) [mm max.]: 1.02 mm
Core diameter (conductor with insulation) [inch max.]: 0.04 in.
Cable sheath diameter [mm min.]: 5.5 mm
Cable sheath diameter [mm max.]: 6.20
Cable sheath diameter [inch min.]: 0.217 in.
Cable sheath diameter [inch max.]: 0.244
Cable access/outlet: 180°
Electrical characteristics
Contact resistance: max. 20 mOhm
Insulation resistance: min. 500 MOhm
Dielectric strength conductor-conductor (secondary) [V DC]: min. 1000 V DC
Materials and material properties
Material - Housing: PC UL94 V0
Material - Contact: PhBr (phosphor bronze)
Material - Contact finish: Ni + Au (nickel-gold)
Halogen free: yes
RoHS: compliant
Environmental conditions
Temperature - Storage °C [min.]: -40 °C
Temperature - Storage °C [max.]: 70 °C
Temperature - Storage °F [min.]: -40 °F
Temperature - Storage °F [max.]: 158 °F
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 70 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 158 °F
Particulate ingress: IP6X with protective housing
Liquid ingress/immersion: IPX7 with protective housing
