Description

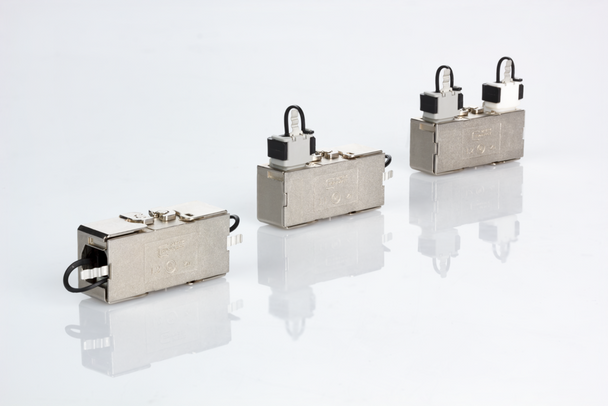

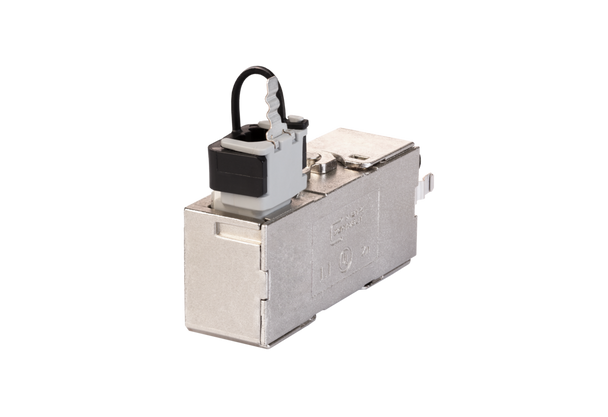

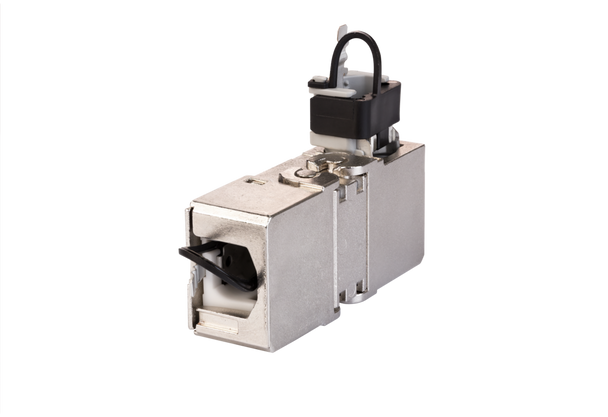

- Cable connector for field assembly Class EA for 8 wire cables (optionally also for 4 wire cables)

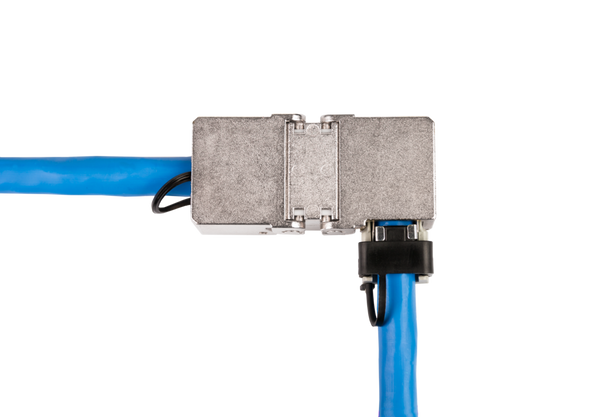

- Cable feed angled 90° and 270°
- to connect / extend / repair / relocate copper data cables up to Cat.7A
- in combination with Cat. 6A or higher copper cables, class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173 is fulfilled
- suitable for 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP
- Compact design, length 46.6 mm x width 14.7 mm x height 31.8 mm
- solid, one-piece and reusable housing refined with zinc die-casting
- simplest confection - mounting without special tools, strain relief via snap-in clip directly on the loading piece
- intelligent cable management in stuffer cap - also suitable for heavily twisted cables
- shield connection and strain relief integrated
- conductor assignment to T568A and T568B is directly printed on the stuffer cap
- Simple extension or relocation of existing infrastructure C6A modul through reusable loading pieces
- easy connection of data cables AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
- solid copper wire diameter 0.409 to 0.643 mm
- stranded copper wire diameter 0.483 to 0.762 mm
- suitable for cables with an overall diameter of 5.5 to 10 mm
- fully shielded version according to DIN EN 50173
Resources
| Cable connector class EA 270° | 130863-05-E | View DataSheet |
|---|
