Sold Out
Metz Connect

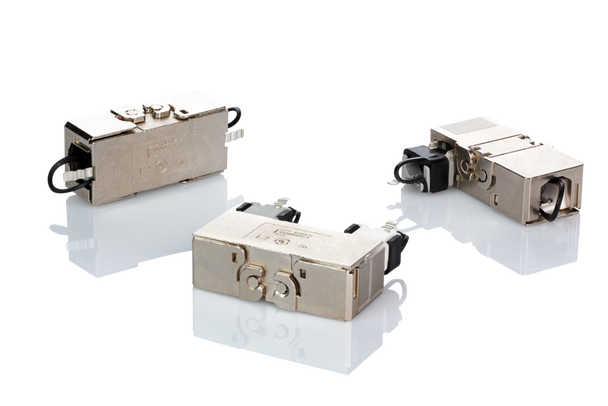

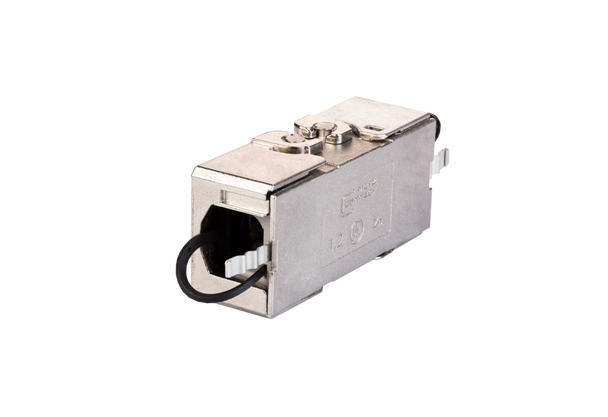

Metz Connect 130863-04-E. Cable connector class EA 180°

No reviews yet Write a Review
$0.00
Metz Connect 130863-04-E Cable connector class EA 180° | American Cable Assemblies
Metz Connect 130863-04-E. Cable connector class EA 180°
Metz Connect 130863-04-E. Cable connector class EA 180°
Metz Connect 130863-04-E. Cable connector class EA 180°
Metz Connect 130863-04-E. Cable connector class EA 180°
SKU:
MTZ130863-04-E
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
RoHS:
compliant
EAN:
4251394607900

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • Cable connector for field assembly Class EA for 8 wire cables (optionally also for 4 wire cables)

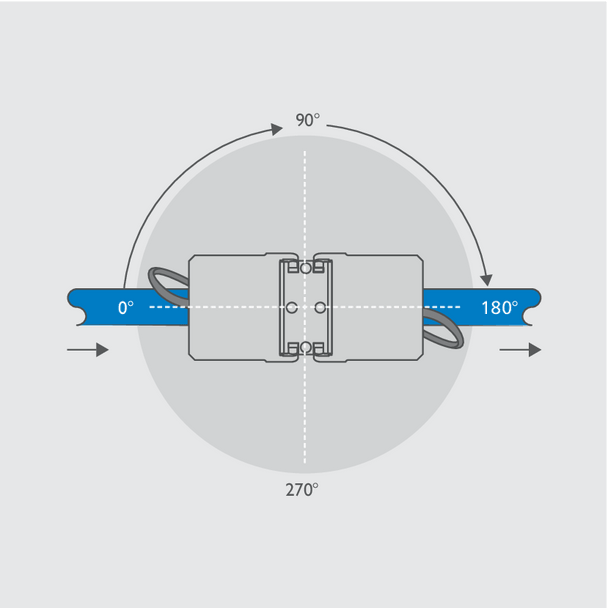

  • Cable feed 180° continuous
  • to connect / extend / repair / relocate copper data cables up to Cat.7A
  • in combination with Cat. 6A or higher copper cables, class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173 is fulfilled
  • suitable for 10GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP
  • Compact design, length 46.6 mm x width 14.7 mm x height 22.6 mm
  • solid, one-piece and reusable housing refined with zinc die-casting

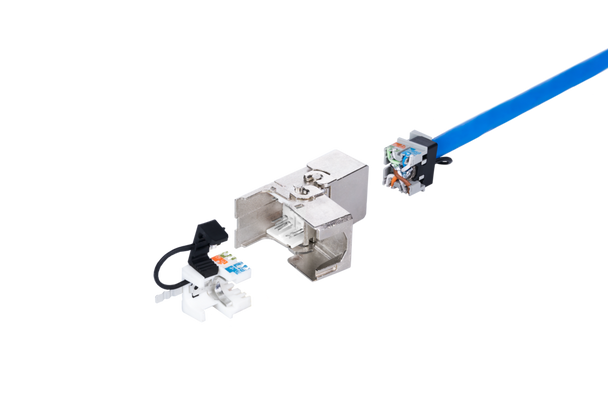

  • simplest confection - mounting without special tools, strain relief via snap-in clip directly on the loading piece
  • intelligent cable management in stuffer cap - also suitable for heavily twisted cables
  • shield connection and strain relief integrated
  • conductor assignment to T568A and T568B is directly printed on the stuffer cap
  • Simple extension or relocation of existing infrastructure C6A modul through reusable loading pieces
  • easy connection of data cables AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
  • solid copper wire diameter 0.409 to 0.643 mm
  • stranded copper wire diameter 0.483 to 0.762 mm
  • suitable for cables with an overall diameter of 5.5 to 10 mm
  • fully shielded version according to DIN EN 50173

Resources

Cable connector class EA 180° | 130863-04-EView DataSheet
