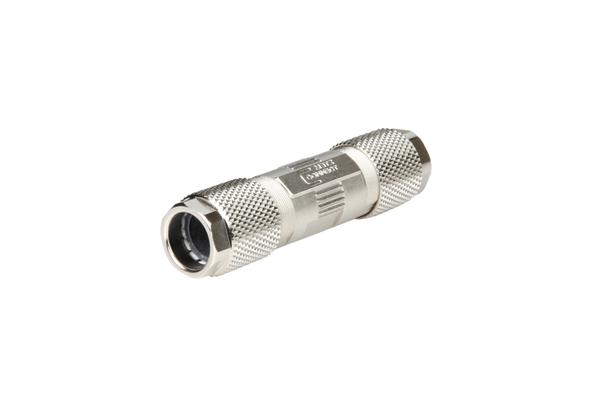

Metz Connect 130863-02-E. Cable connector class FA

• cable connector for field assembly Class F_A for 8 wire cables
• to connect / extend / repair / relocate copper data cables up to Cat.7_A
• compliance to Class F_A up to 1000 MHz according to ISO/IEC 11801 in connection with Cat.7_A copper cables *1
• compact design: diameter 16.8 mm x length 64 mm
• IP67 protected housing in combination with IP67 appropriate cables *2
• refined zinc die-cast housing
• easy and fast assembly without special tools
• shield connection and strain relief integrated
• easy connection of data cables AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
• conductor diameter up to 1.6 mm
• suitable for cables with an overall diameter of 5.0 to 9.7 mm *2
• fully shielded version according to DIN EN 50173-1
• suitable for applications in the railway industry according to data sheet
• *1 F_A (with cable lengths of 20 m and above on the left and right side of the cable connector)
• *2 IPX7 (when combined with cables suitable for IP67 and a cable jacket diameter of 6.2 mm to 9.7 mm)
