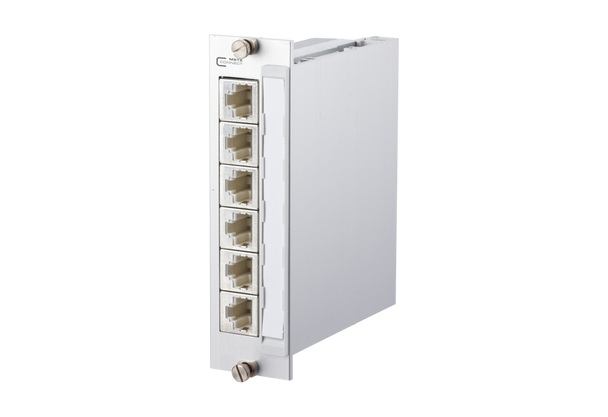

Metz Connect 130857C-E. E-DAT C6A 6 port 3RU 7HP LSA modular

• 3RU module, made of anodized aluminum, mounting in 3RU frame
• Cat.6_A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
• compliance with class E_A up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
• tested: components up to 600 MHz, link up to 800 MHz
• suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
• wire pairs can be led to the LSA terminal without untwisting the pair
• connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 26/1-22/1) conductor colors marking to T568A
• label window for enclosed identification labels
• optional strain relief using cable ties
• modules connected by means of grounding rail, incl. 30 cm grounding cable
• 3RU module frame for mounting in surface-mounted housing, top hat rail adapter or 3RU module frame
