Description

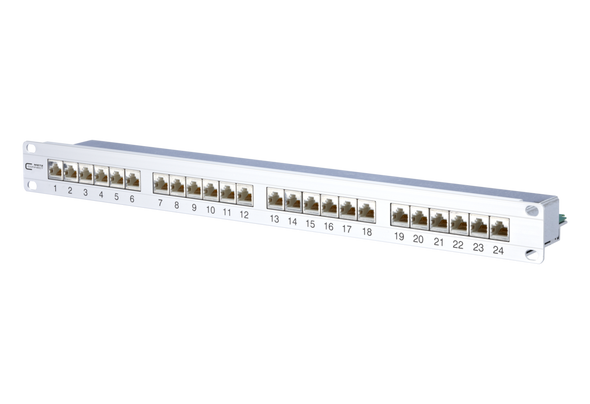

- 10 or 19 inch 1RU module frame made of silver anodized aluminum with 12 or 24 individually shielded jacks
- Cat.5e Class E Link Performance according to ISO/IEC11801, DIN EN 50173-1
- suitable for 1 GBit Ethernet (IEEE 802.3), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
- pin assignment to ISO/IEC 11801/EN 50173-1, the wire pairs can be led to the terminal without untwisting the pairs
- strain relief using cable ties
- label window for enclosed identification labels
- label sheet 210 x 297 mm see accessory
- grounding bolt M6 x 10 with nut and lock washer
- variants: 2x6 port 10 inch, 4x6 port 19 inch, 24 port 19 inch
Resources
| E-DAT patch panel 10 inch 1RU 12 port | 130851-01-E | View DataSheet |
|---|
