Description

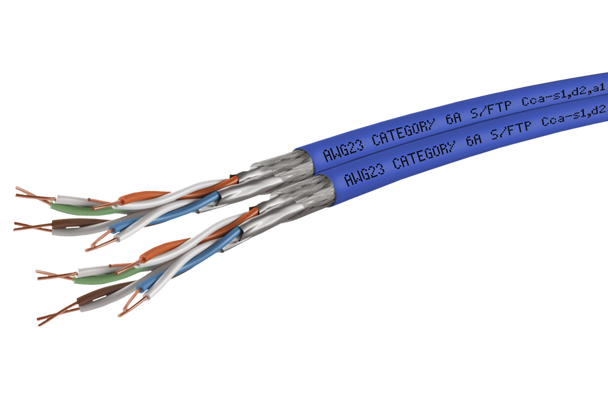

- 10 GBase-T installation cable, duplex
- shielded installation cable Cat.6A Class EA, AWG 23
- 2 x 4 pairs
- outer diameter: 7.4 x 15.4 mm
- color of the cable jacket: blue
- coupling attenuation greater than or equal to 85 dB
- applicable standards: EN 50173, ISO/IEC 11801
- cable jacket: LSHF (LSOH)
- flame-retardant to: IEC 60332-1/EN 60332-1 and IEC 60332-3-24/EN 60332-3-24
- fire behaviour: Cca s1,d1,a1
Resources
| MC 550 AWG 23 Cat.6A S/FTP 2x4P LSHF-FR 500 m, class Cca s1 d1 a1 | 130842A6ASFCF1D | View DataSheet |
|---|
