Description
- 25 GBit / 10 GBit installation cable, simplex

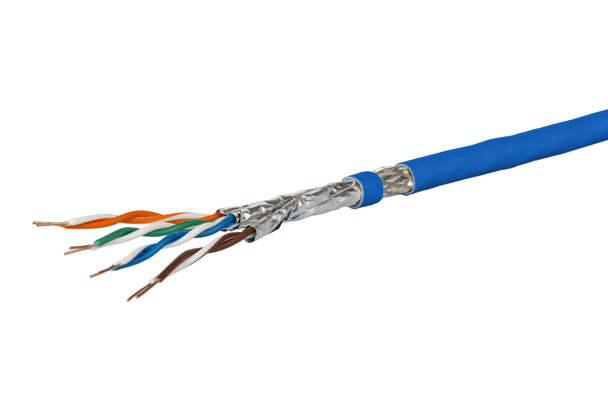

- installation cable Cat.7A AWG 22 S/FTP with wires shielded in pairs

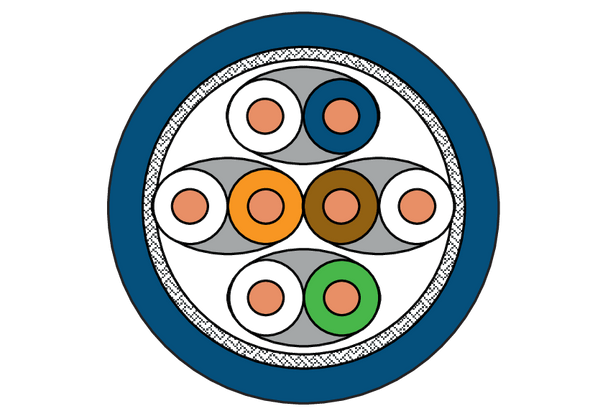

- 4 pairs (PiMF)
- pair shield: plastic foil with aluminum coating
- overall shield: tinned copper braid
- outer diameter 7.5 - 8.1 mm
- color of the cable jacket: blue
- coupling attenuation greater than or equal to 85 dB
- electrical data tested up to 1500 MHz
- GHMT Cat.7A PVP certified
- applicable standards: EN 50173-1, ISO/IEC 11801, EN 50288-9-1 and IEC 61156-5
- cable jacket: LSHF-FR (LSOH-FR)
- flame-retardant to IEC 60332-1, IEC 60332-3-24, IEC 60754-2 and IEC 61034
- fire behaviour: Class Dca s2 d2 a1 acc. to EN 50399 (classification acc. to EN 13501-6)
- Delivery unit: on drum - 1000 m/3280 ft
Resources
| MC GC1300 pro22 Cat.7A S/FTP 4P LSHF-FR 328 ft, class Dca s2 d2 a1 | 1308427B34145 | View DataSheet |
|---|
